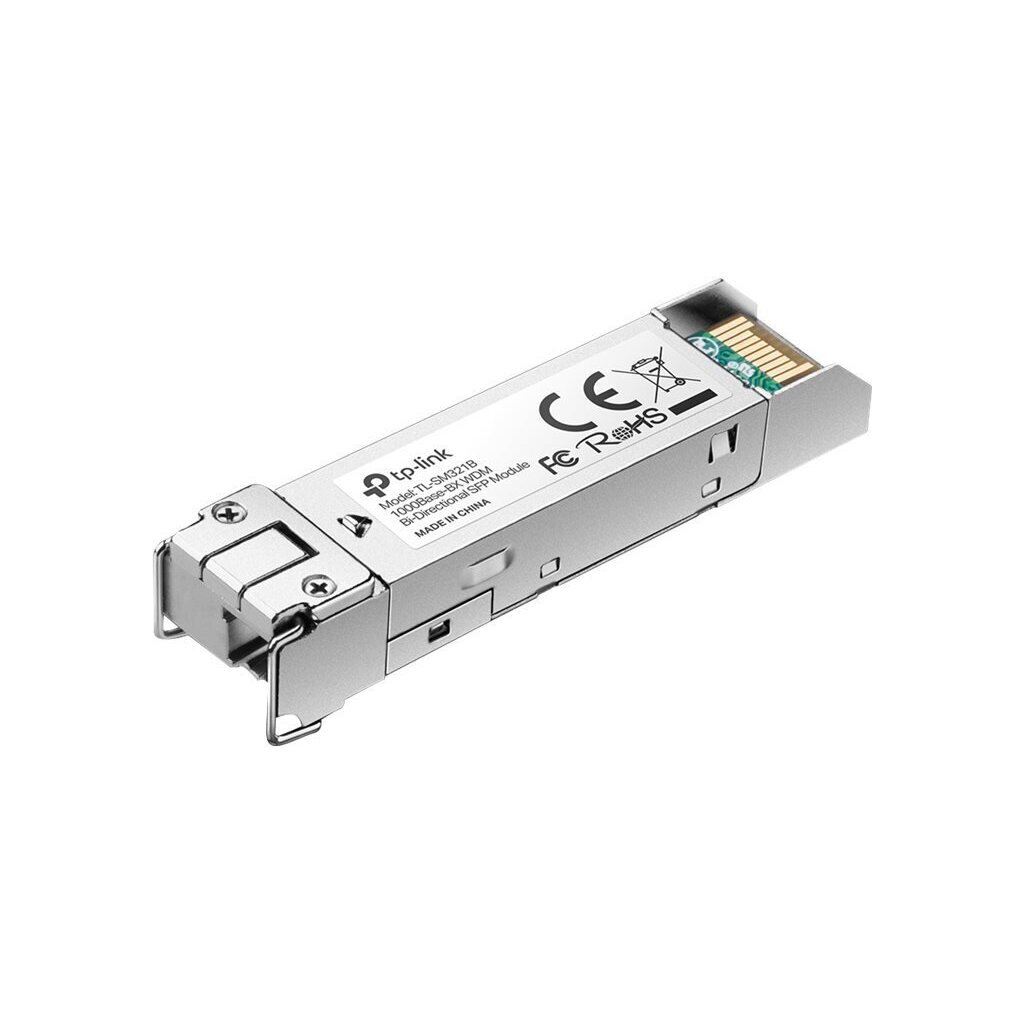

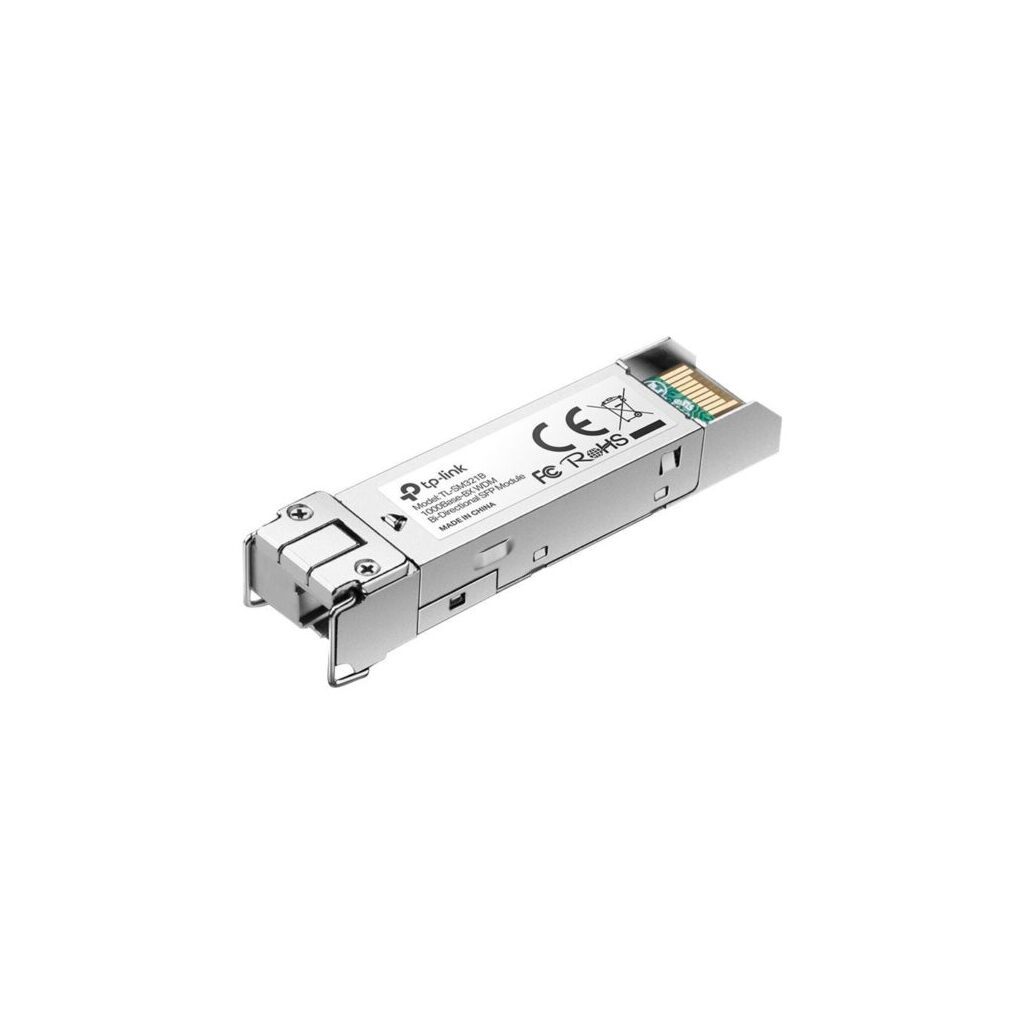

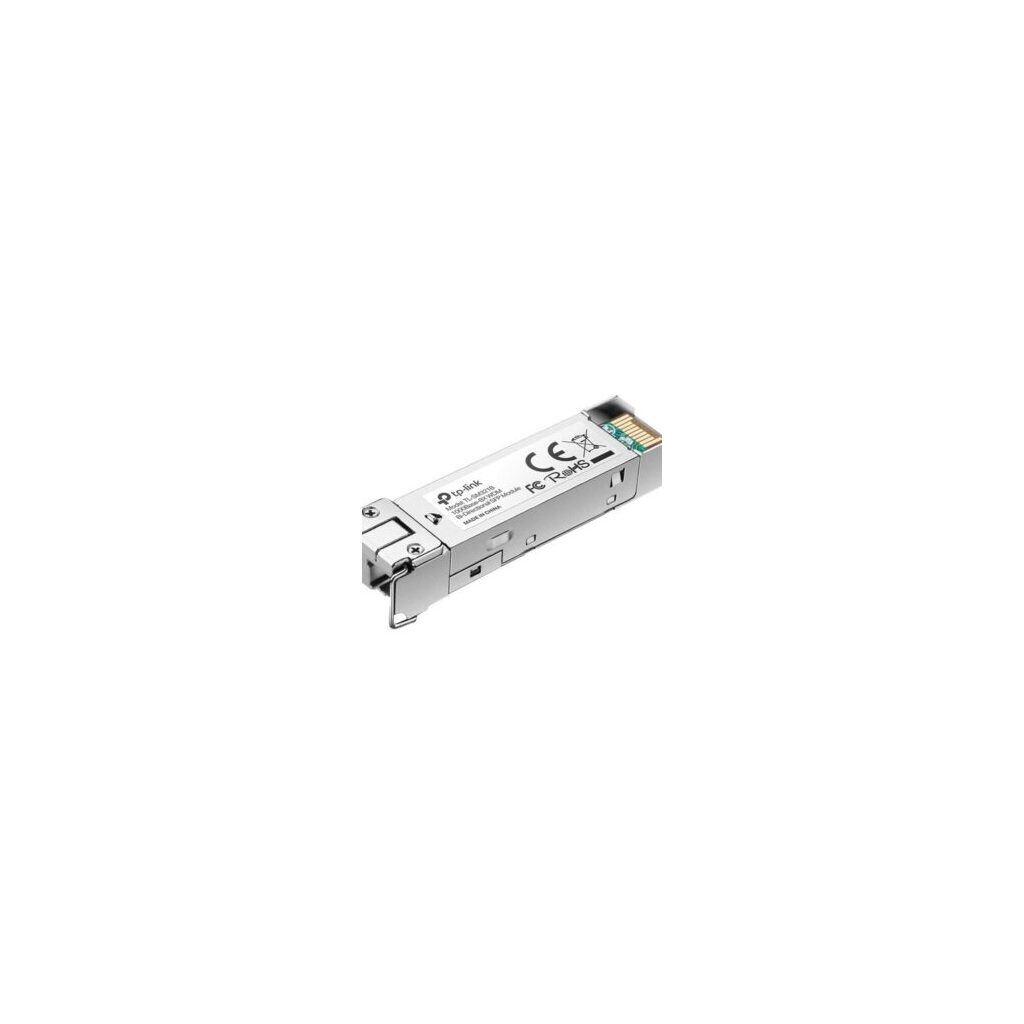

TP-Link TL-SM321B – V2 – SFP (mini-GBIC) Transceiver Module – GigE

Key Features

• Adopts the latest standard 1000Base-BX
• Up to 2 km transmission distance in 9/125 μm SMF (Single-Mode Fiber)
• Compatible with Small Form Pluggable Multi-Source Agreement (SFP-MSA)
• Supports Digital Diagnostic Monitoring (DDM)
• Supports Hot Swappable

TP-LINK´s TL-SM321B-2 is developed in accordance with the Small Form Pluggable Multi-Source Agreement (SFP-MSA). As a WDM Bi-Directional optical transceiver, TL-SM321B-2 uses an integrated LC Bi-Directional optical interface connector and the data link is up to 2 km in 9/125 μm SMF (Single-Mode Fiber).
Also, TL-SM321B-2 incorporates the Digital Diagnostic Monitoring (DDM) feature which is compatible with SFF-8472. DDM supports real-time monitoring of the transceiver, and shows parameters including the transceiver current which transmits/receives optical power and operating temperature.
TP-Link’s TL-SM321B-2 is used for short-and medium distance fiber network in practice, and it provides fast and stable gigabit fiber connection for switches, routers, servers, etc.
