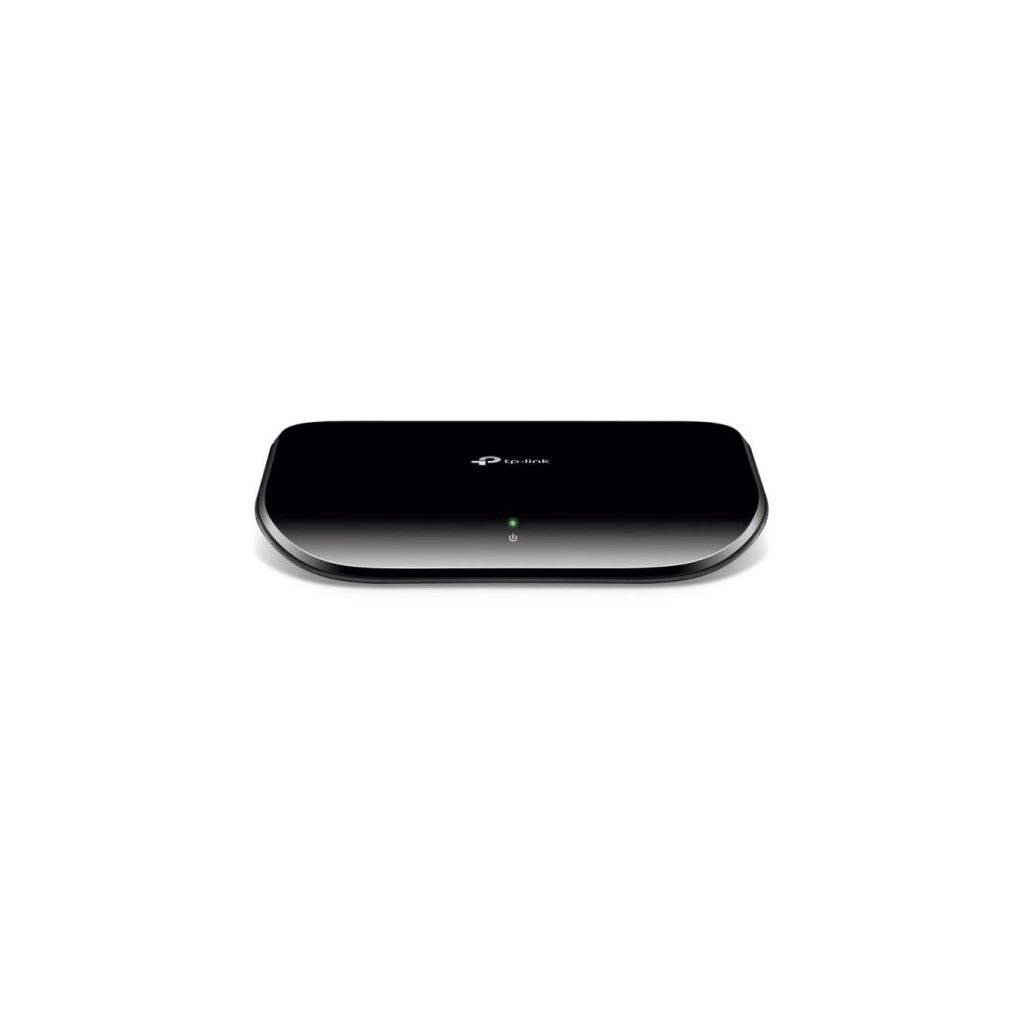

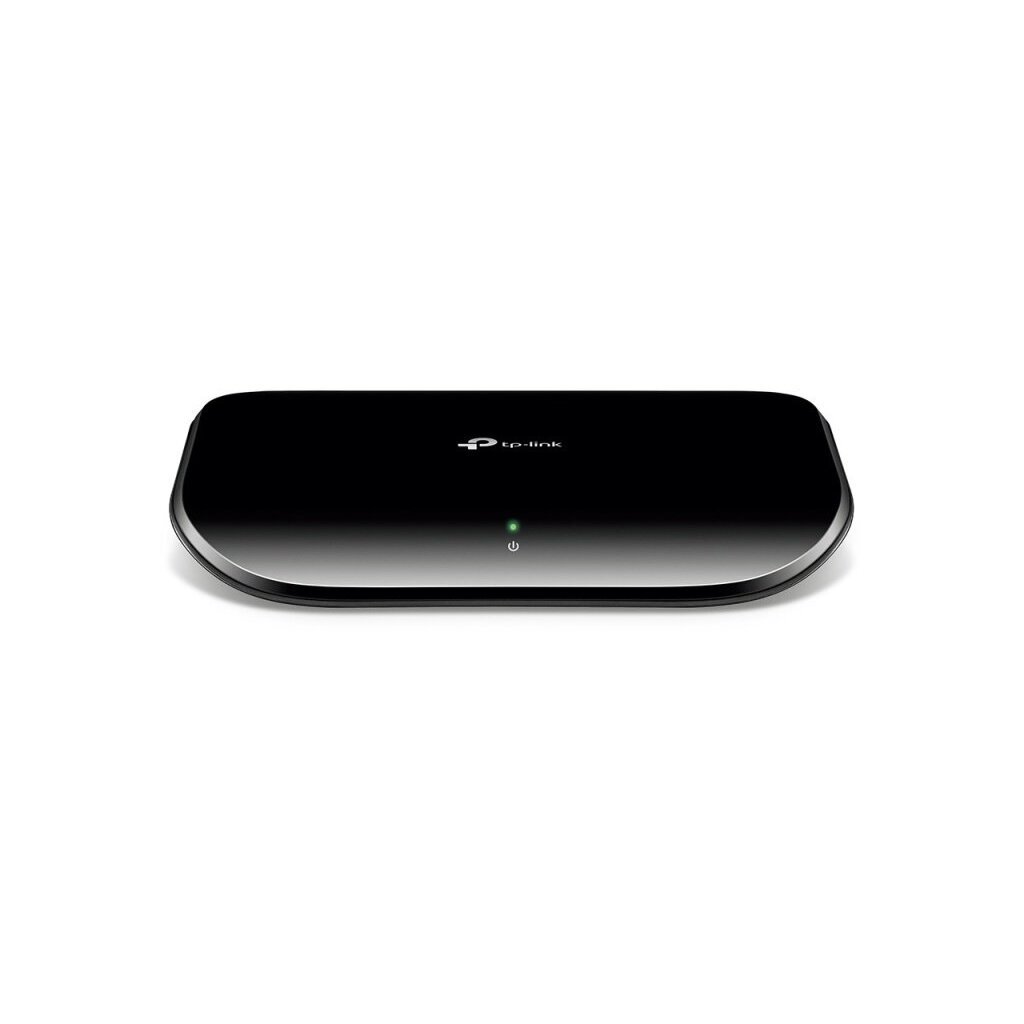

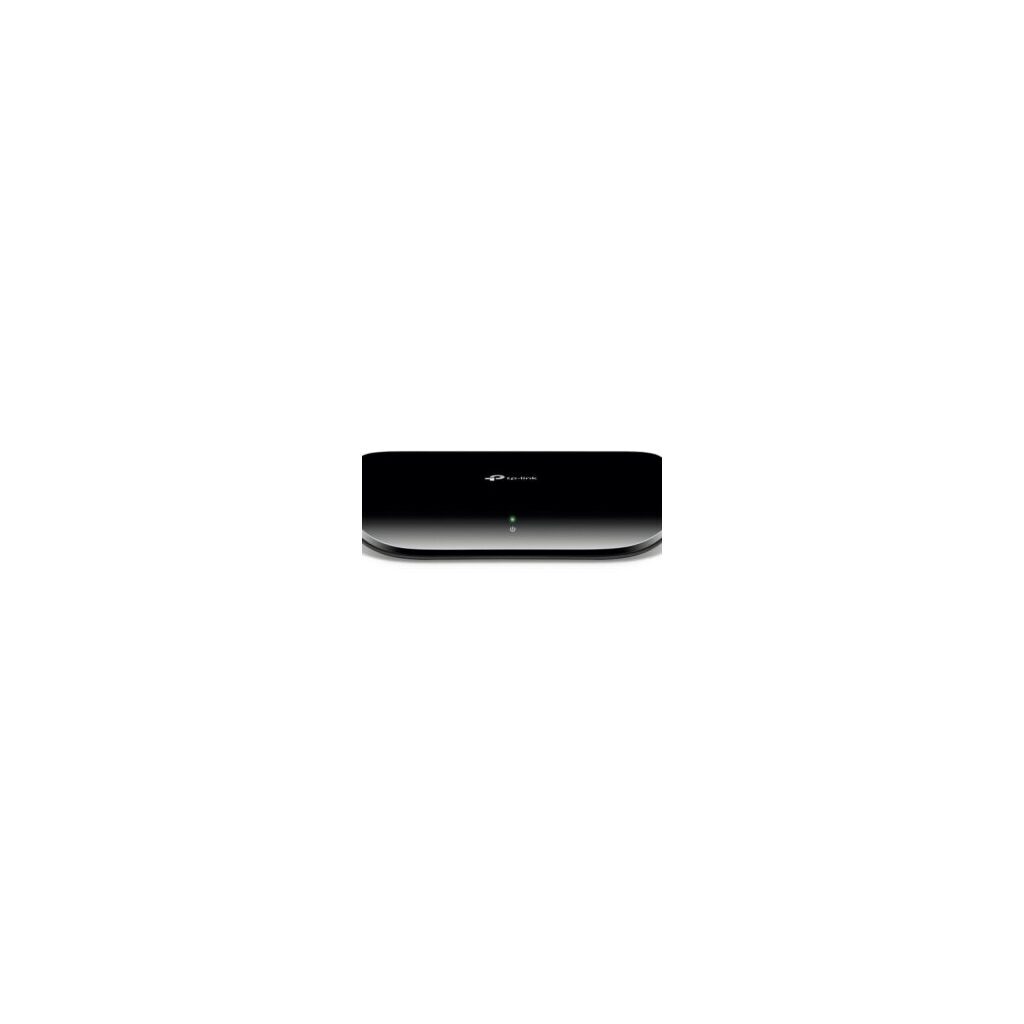

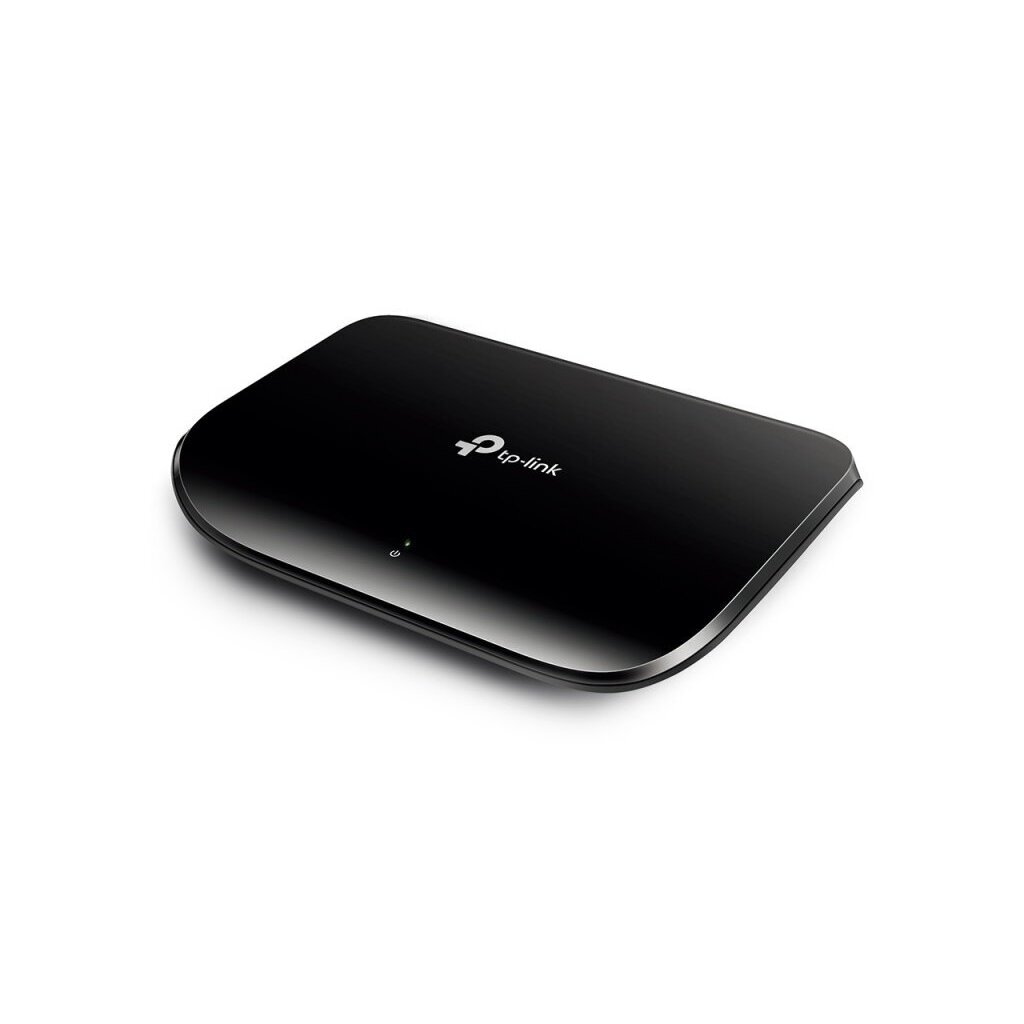

TP-Link TL-SG1005D V8 5 Port Unmanaged Gigabit Switch

Gigabit Expansion Solution

• TL-SG1005D equips 5 10/100/1000Mbps ports, providing up to 10Gbps switching capacity
• TL-SG1008D equips 8 10/100/1000Mbps ports, providing up to 16Gbps switching capacity
• 15KB Jumbo Frame improves performance of large data transfers
• IEEE 802.3x flow control provides reliable data transfer

Highlight Performance

• 802.1p and DSCP QoS enables smooth traffic

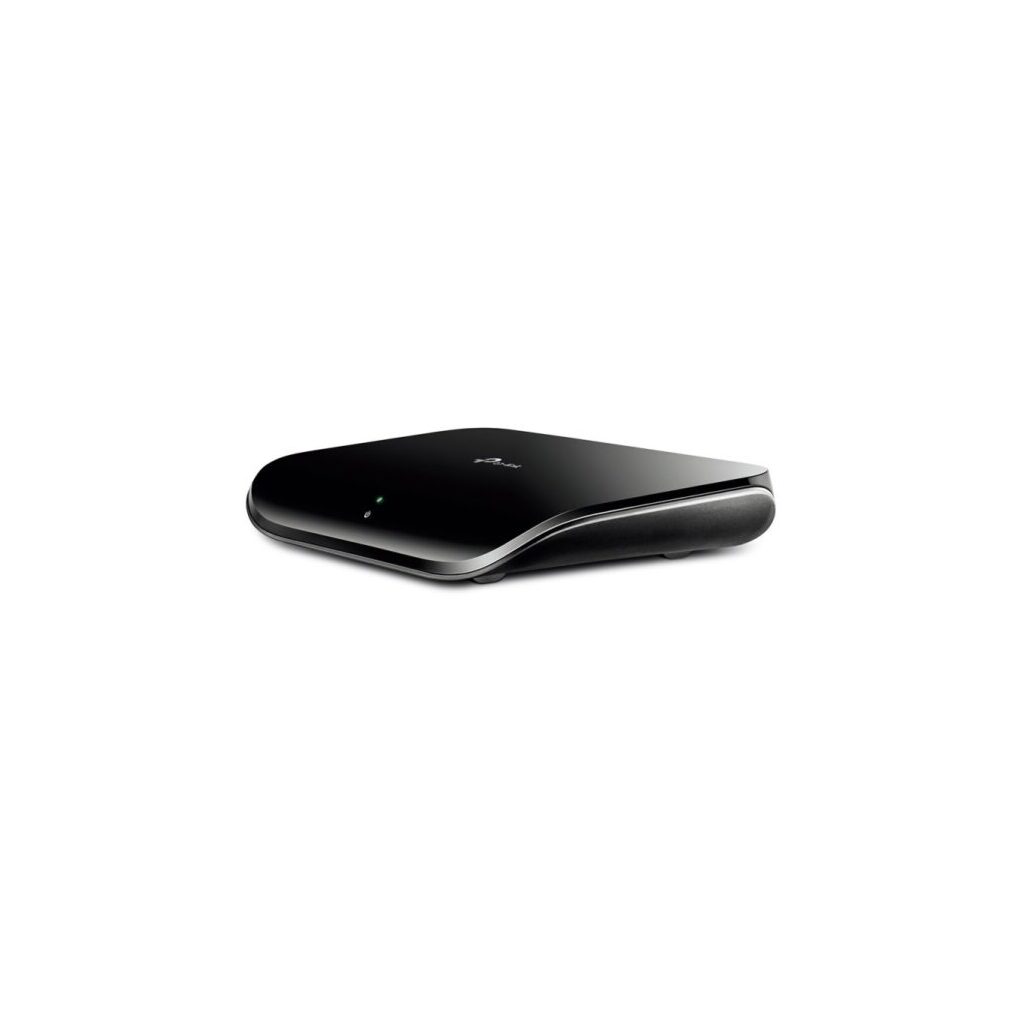

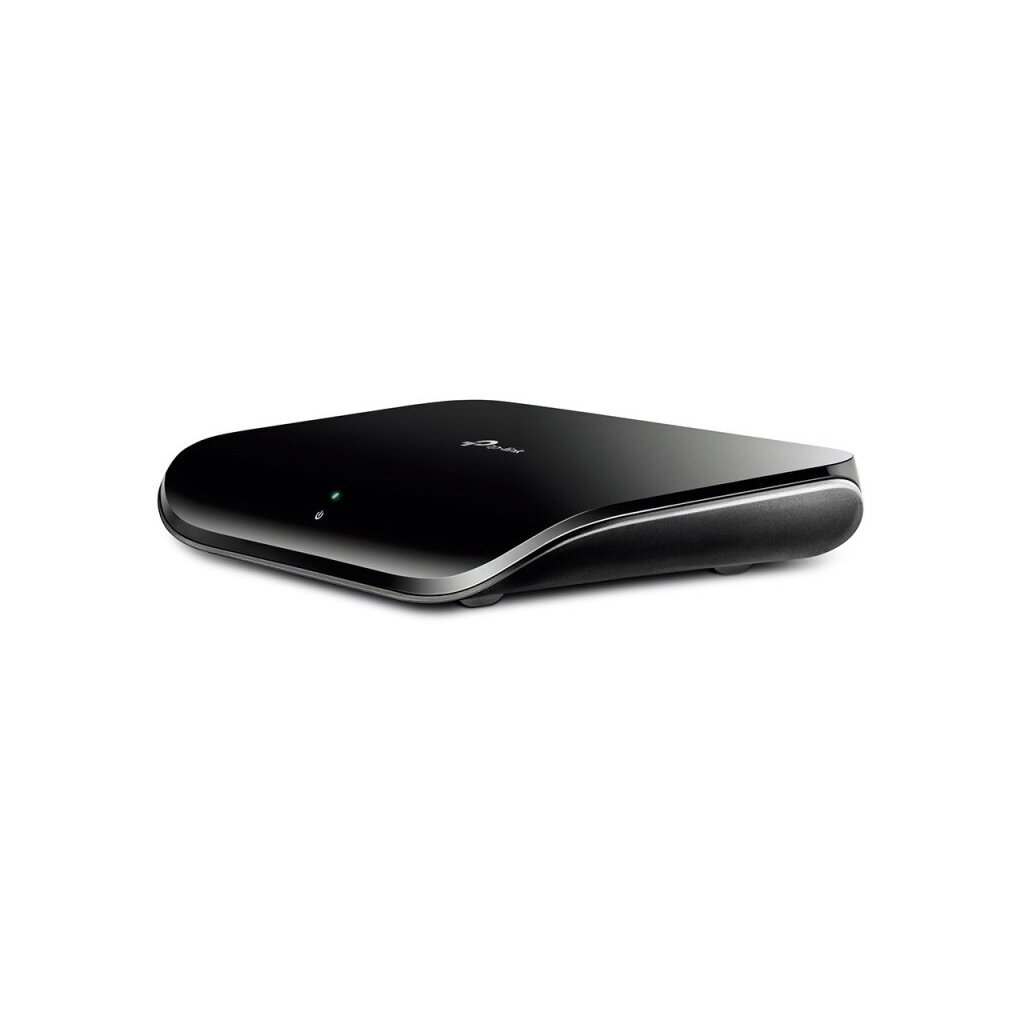

• Fanless design ensures quiet operation
• Green technology reduces power consumption

• Just plug and play, no configuration required
• Auto MDI/MDIX eliminates the need for crossover cables
• Auto-negotiation intelligently adjusts for compatibility and optimal performance

Specifications

Interface:

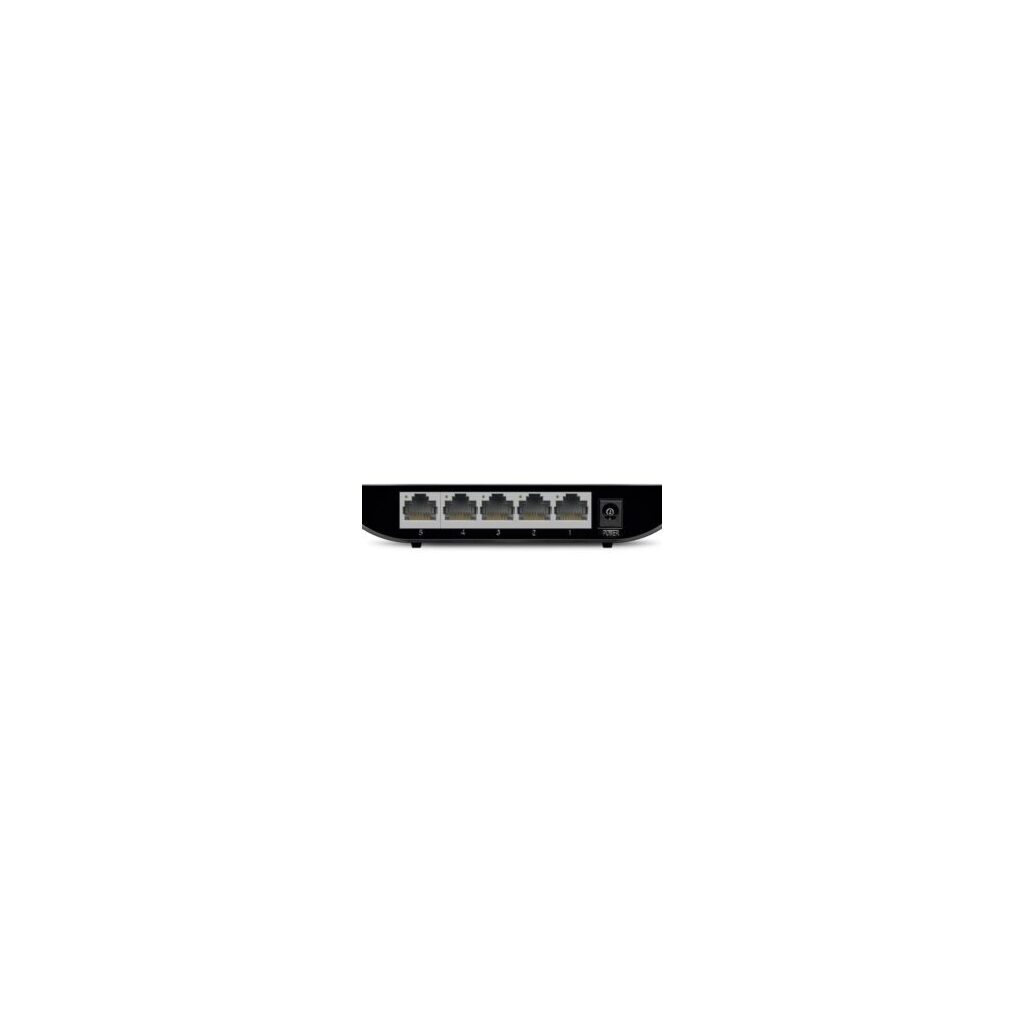

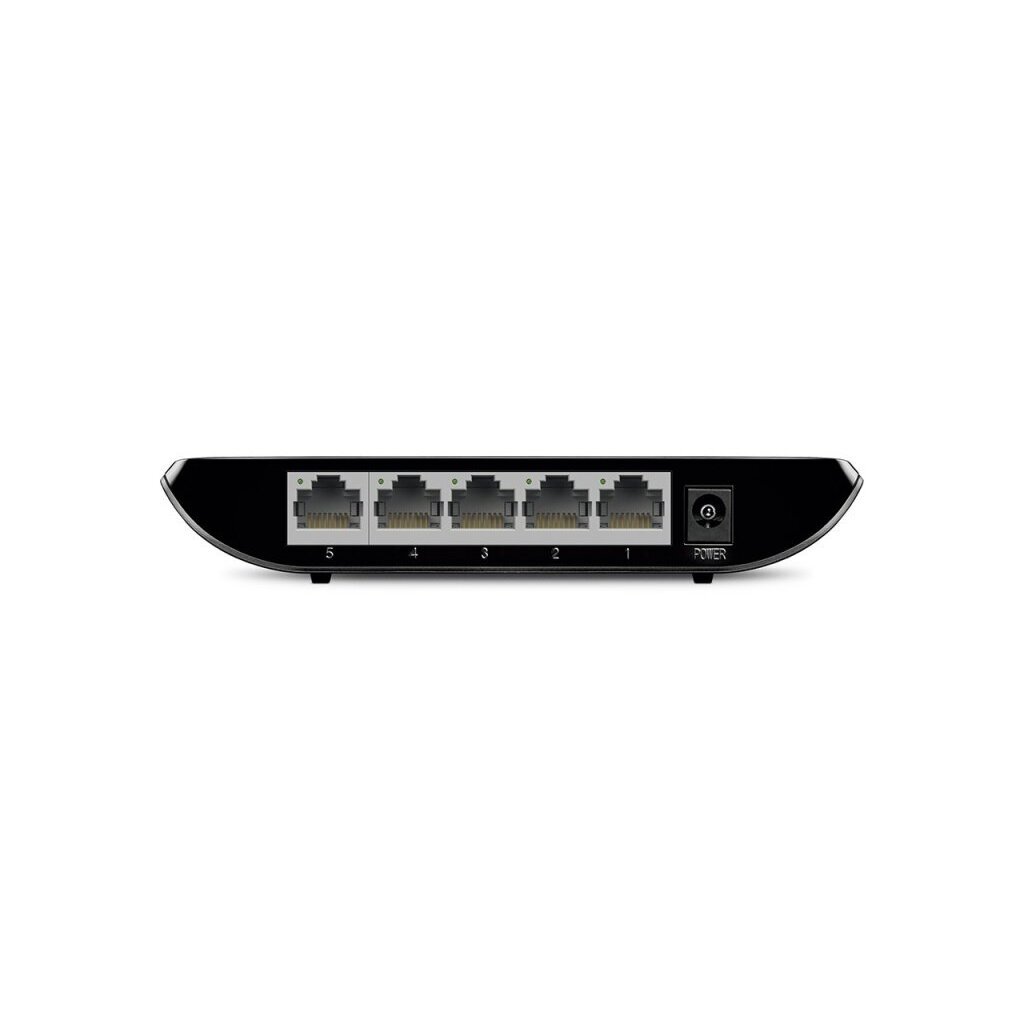

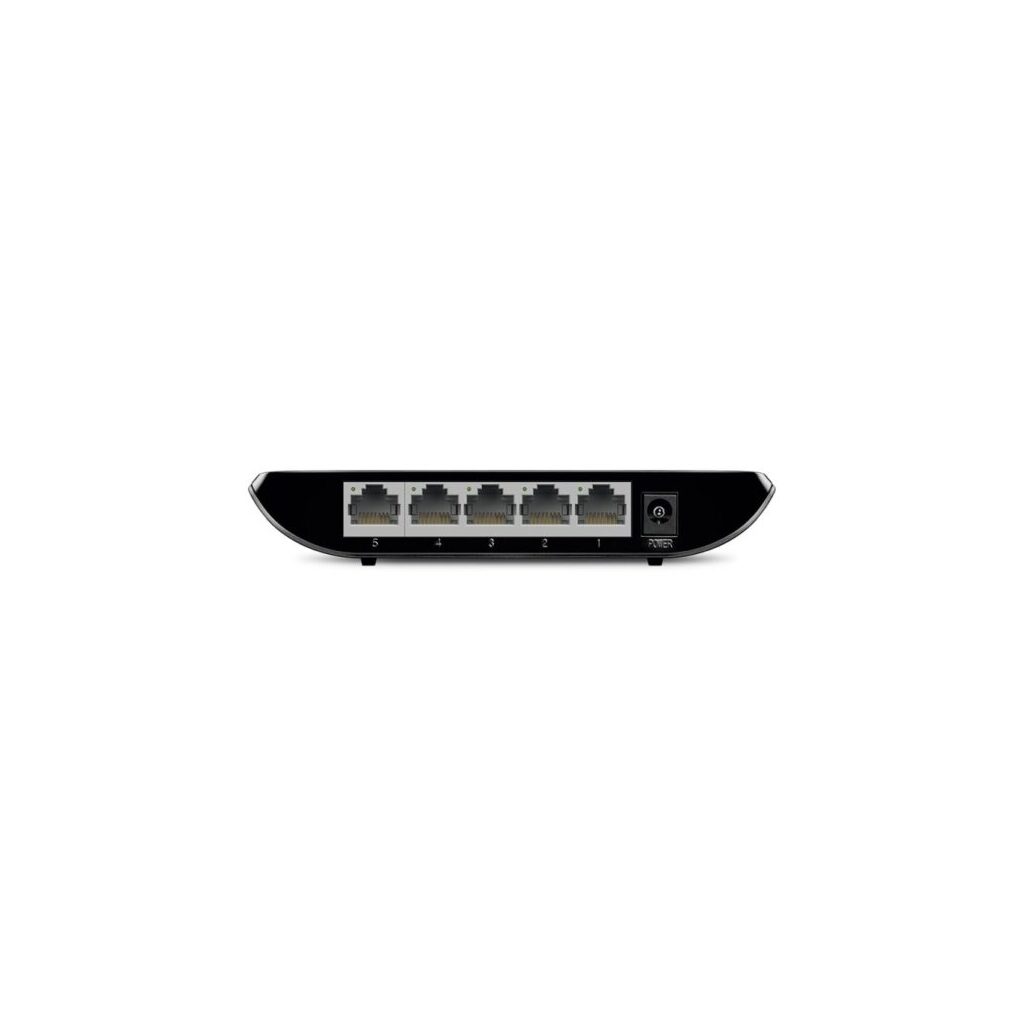

TL-SG1005D: 5 10/100/1000Mbps RJ45 Ports, Auto Negotiation, Auto MDI/MDIX

TL-SG1008D:  8 10/100/1000Mbps RJ45 Ports, Auto Negotiation, Auto MDI/MDIX

Standards: IEEE 802.3, IEEE 802.3i, IEEE 802.3u, IEEE802.3ab, IEEE 802.3x, IEEE 802.1p

Transmission Method : Store and Forward

Advanced Functions: Green Technology, 802.3x Flow Control, 802.1p/DSCP QoS

Max Power Consumption (220V/50Hz):

TL-SG1005D: 2.41W; TL-SG1008D: 4.63W

Power Supply: External Power Adapter (Output: 9VDC / 0.6A)

Certification: FCC, CE, RoHs

Environment:

Operating Temperature: 0℃~40℃ (32℉ ~104℉)

Storage Temperature: -40℃~70℃ (-40℉ ~158℉)

Operating Humidity: 10%~90%RH, non-condensing;

Storage Humidity: 5%~90%RH, non-condensing

Package Contents:

5/8-Port Gigabit Desktop Switch TL-SG1005D/TL-SG1008D

Power Adapter

Installation Guide
