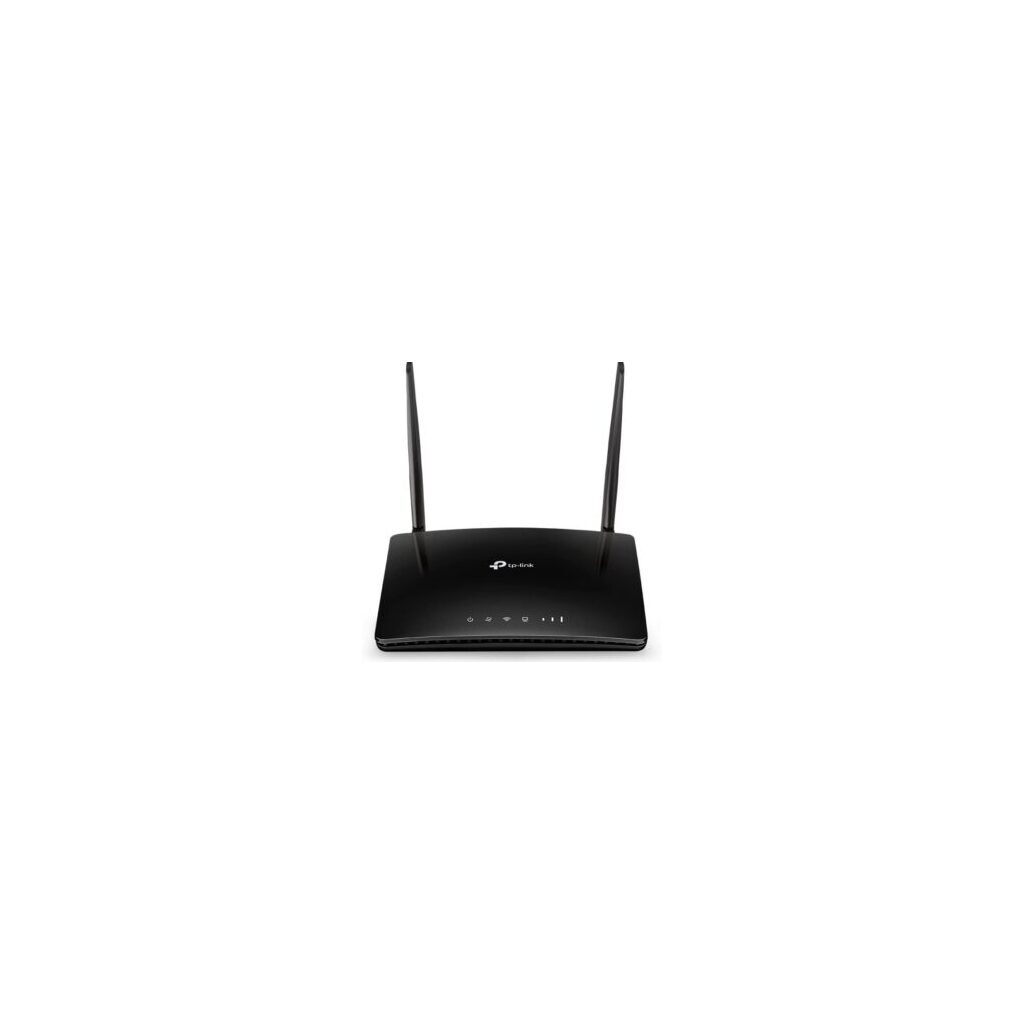

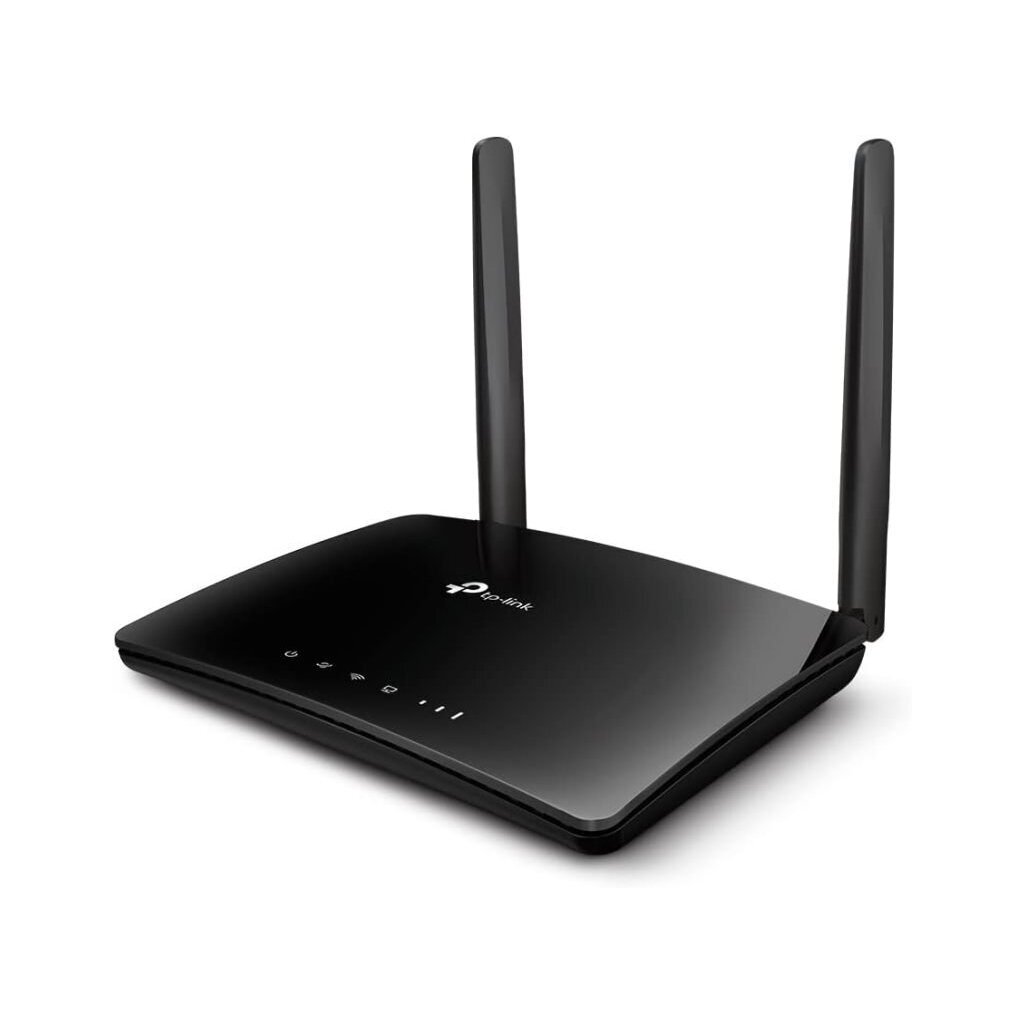

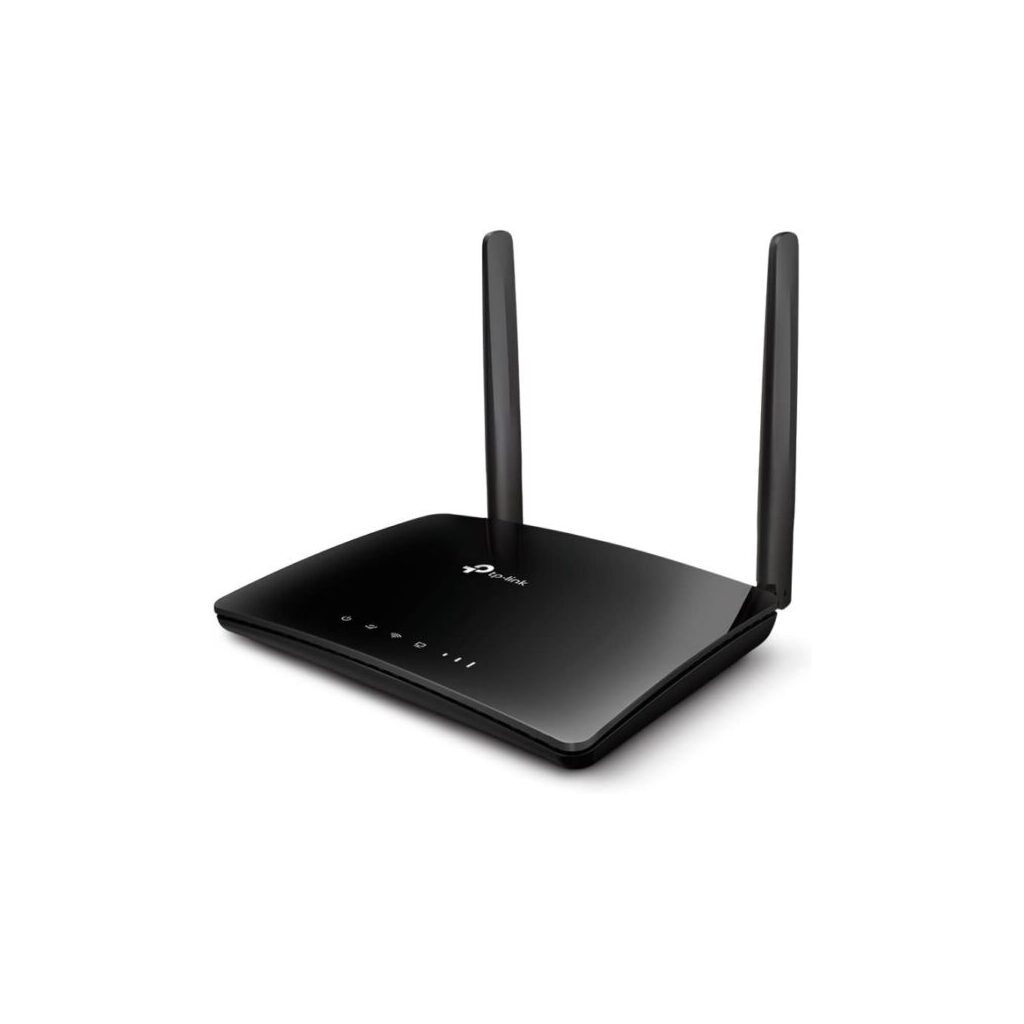

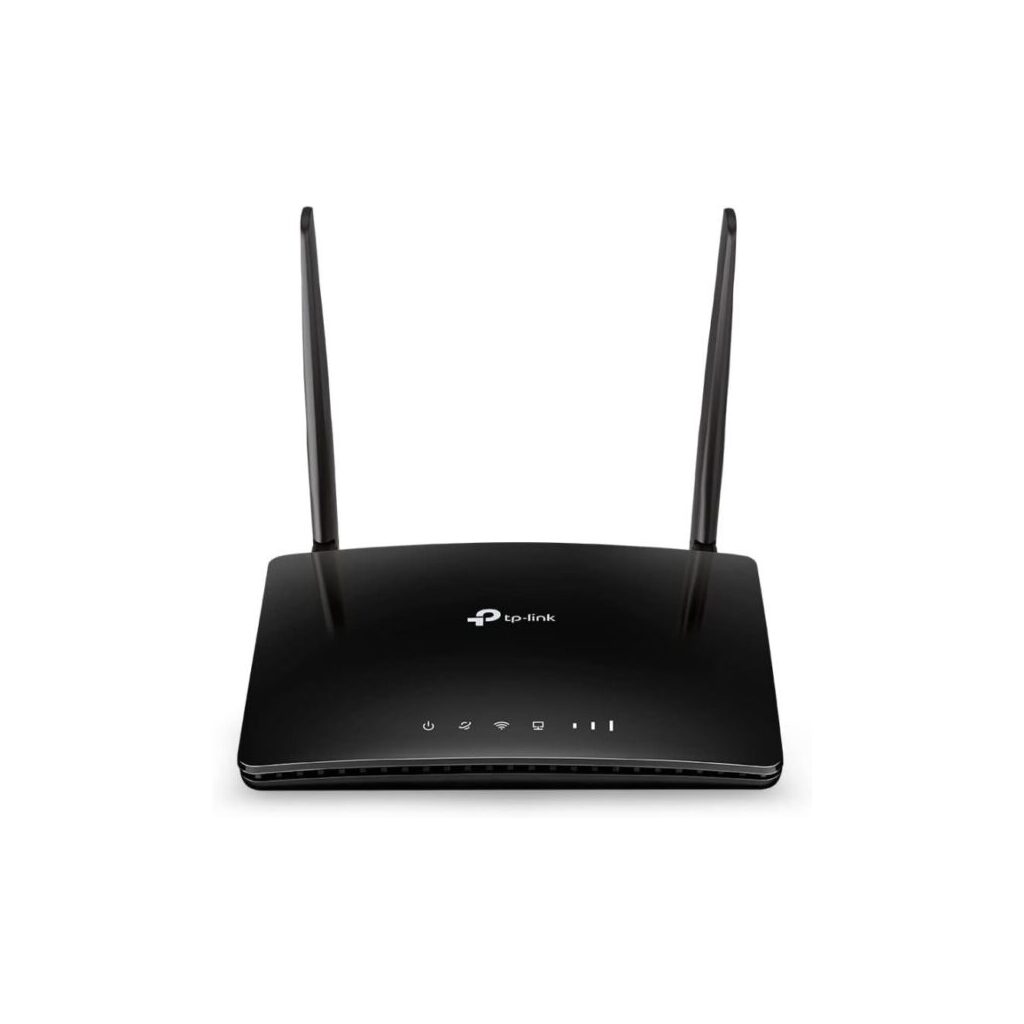

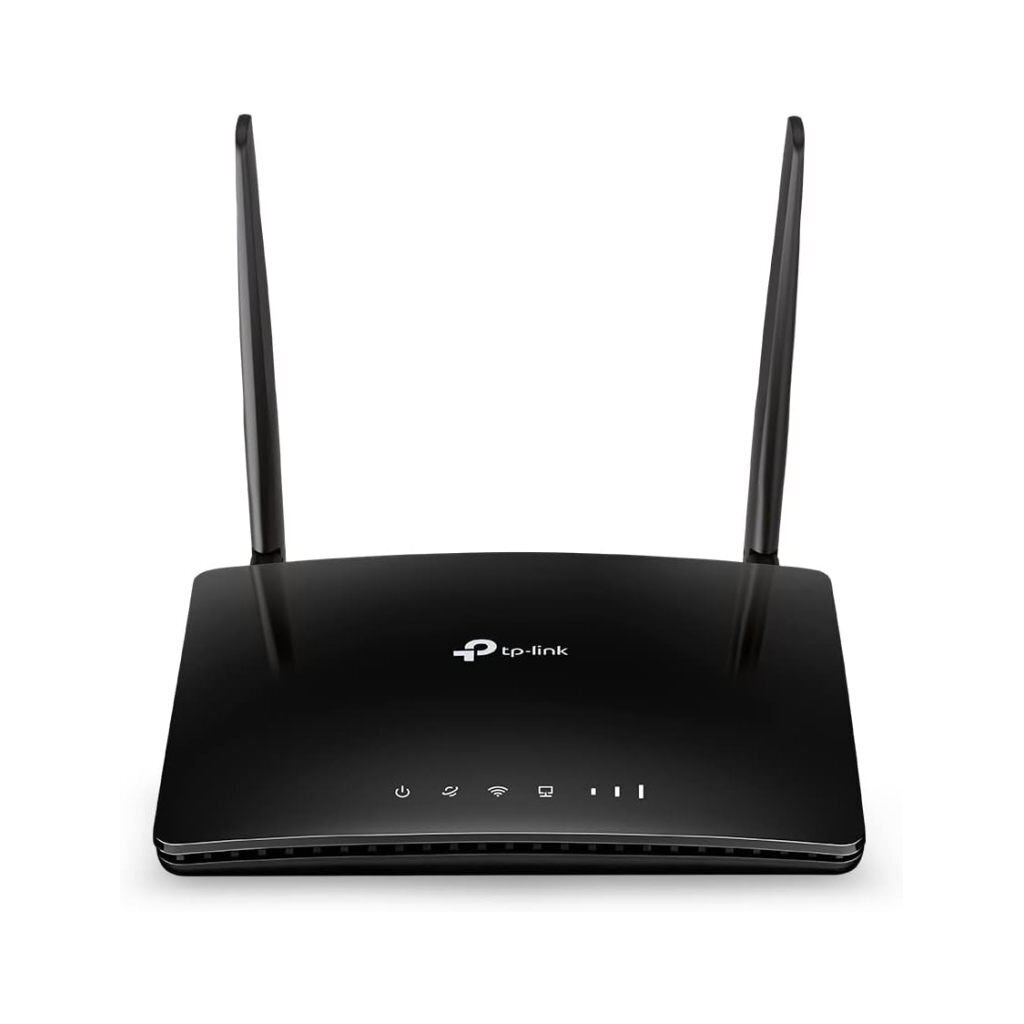

TP-Link TL-MR6400 N300 4G LTE Router

Aerials are NOT detachable

Share Your 4G LTE Network

Take full advantage of your cutting-edge 4G LTE network with the TL-MR6400, which can achieve download speeds of up to 150Mbps. The TL-MR6400 allows you to share your 4G LTE network with multiple Wi-Fi devices so you can enjoy uninterrupted HD movies, rapid file downloads, and video chats that won’t freeze up.



300Mbps Wireless Speed

The 4G LTE router provides the 300Mbps Wi-Fi connections that you need for online gaming, HD streaming video, ultra-fast downloads. The integrated antennas allow you to enjoy stable wireless connections and excellent wireless coverage.

No Configuration Required

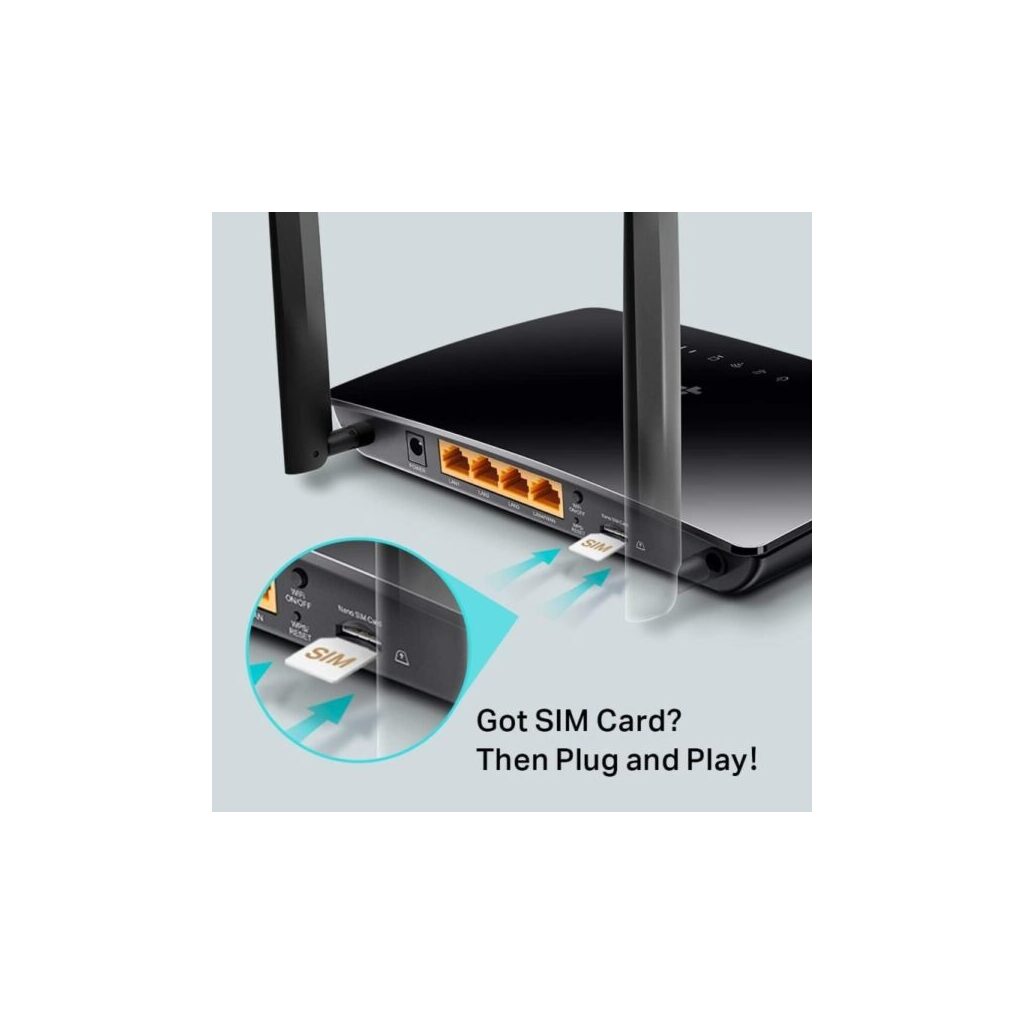

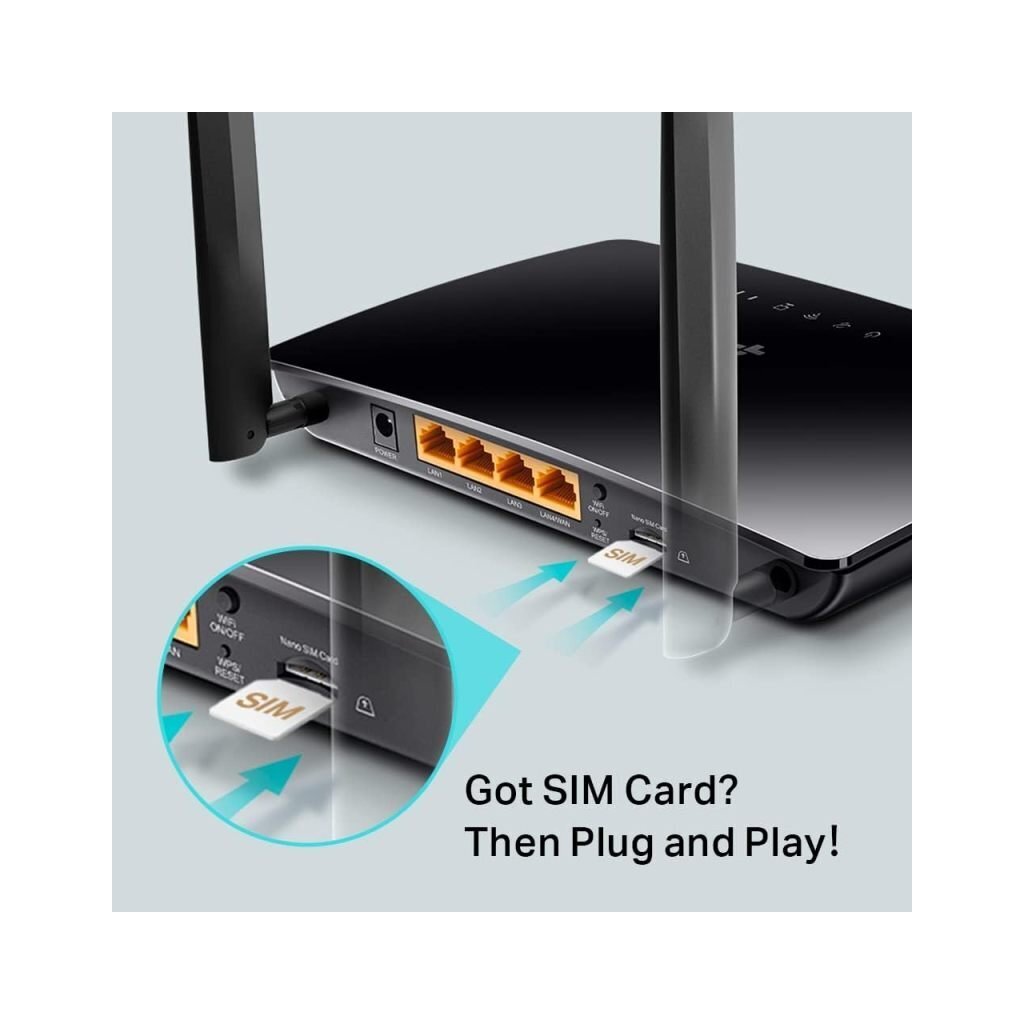

With an integrated 4G LTE modem and a built-in Nano SIM card slot, all you need to do insert a Nano SIM card and turn the router on. Enjoying fast, stable Wi-Fi on a 4G LTE network has never been easier.

Wi-Fi Where You Need It

The TL-MR6400 offers unmatched convenience and versatility. It provides the perfect solution in any situation, from relaxing at home to working in a remote location, just plug it in to boost on-site productivity and stay connected in a diverse range of environments. From the exhibition center to the RV, the TL-MR6400 has you covered.

Available WAN Connection

With the inclusion of the WAN/LAN port, the TL-MR6400 can also support a wide variety of connection types, including cable, fiber, and DSL modems.

• Great Coverage – Integrated antennas provide stable wireless connections
• No Configuration – Simply insert your Nano SIM card into the built-in 4G LTE
• modem and turn on the router
• 300Mbps Wi-Fi – Provides the 300Mbps Wi-Fi connections that you need for
• online gaming, HD streaming video, ultra-fast downloads
• Available LAN/WAN Port – Allows you to connect to any standard cable,
• fiber, or xDSL modem

4G LTE

• Ideal for cutting-edge 4G LTE networks
• 150Mbps/50Mbps – 150Mbps Download speeds and 50Mbps upload speeds
• Backward Compatible – Compatible with 4G/3G/2G network

WiFi Speed

• 300Mbps Wireless Speed – Provides the 300Mbps Wi-Fi connections that you need for online gaming, HD streaming video, ultra-fast downloads

WiFi Range

• Better Coverage – Integrated antennas provide stable wireless connections and better coverage

Reliability

• IP QoS – Advanced QoS automatically prioritizes streaming and gaming applications

Ease of Use

• No Conguration – Simply insert your Nano SIM card into the built-in 4G LTE modem and turn on the router
• Available LAN/WAN port – Allows you to connect to any standard cable, ber, or xDSL modem
• Fast Encryption – Easy one-touch WPA wireless security encryption with the WPS button
• Easy Wi-Fi On/Off – Wi-Fi On/Off Button allows users to turn wireless radio on or off

Security

• Access Control – Guest Network Access provides secure Wi-Fi access for guests
• Parental Control – Establish restricted access policies for all connected devices
• Easy Bandwidth Management – Bandwidth Control makes it easier for you to manage the bandwidth of connected devices
• Encryptions for Secure Network – WPA-PSK/WPA2- PSK encryptions provide active defense against security threats for user networks

Specifications

Hardware

Ethernet Ports

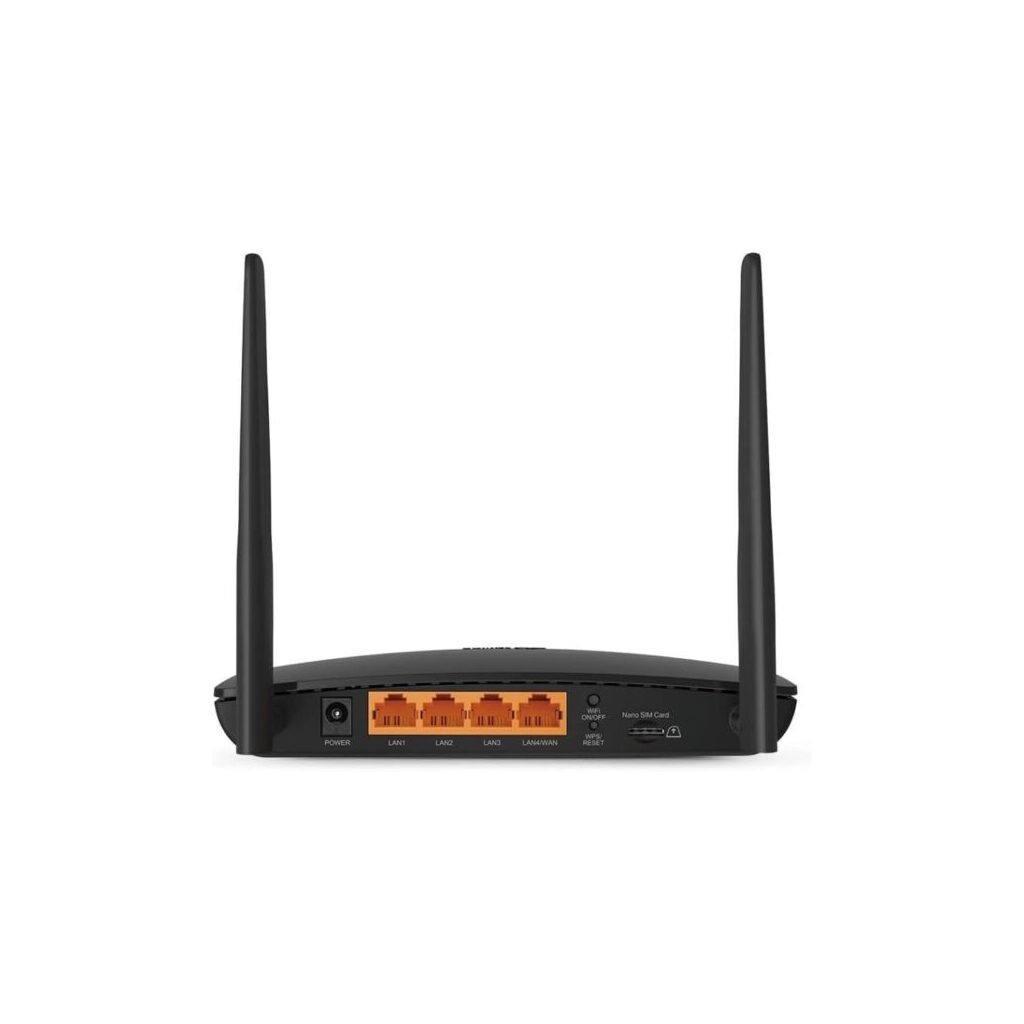

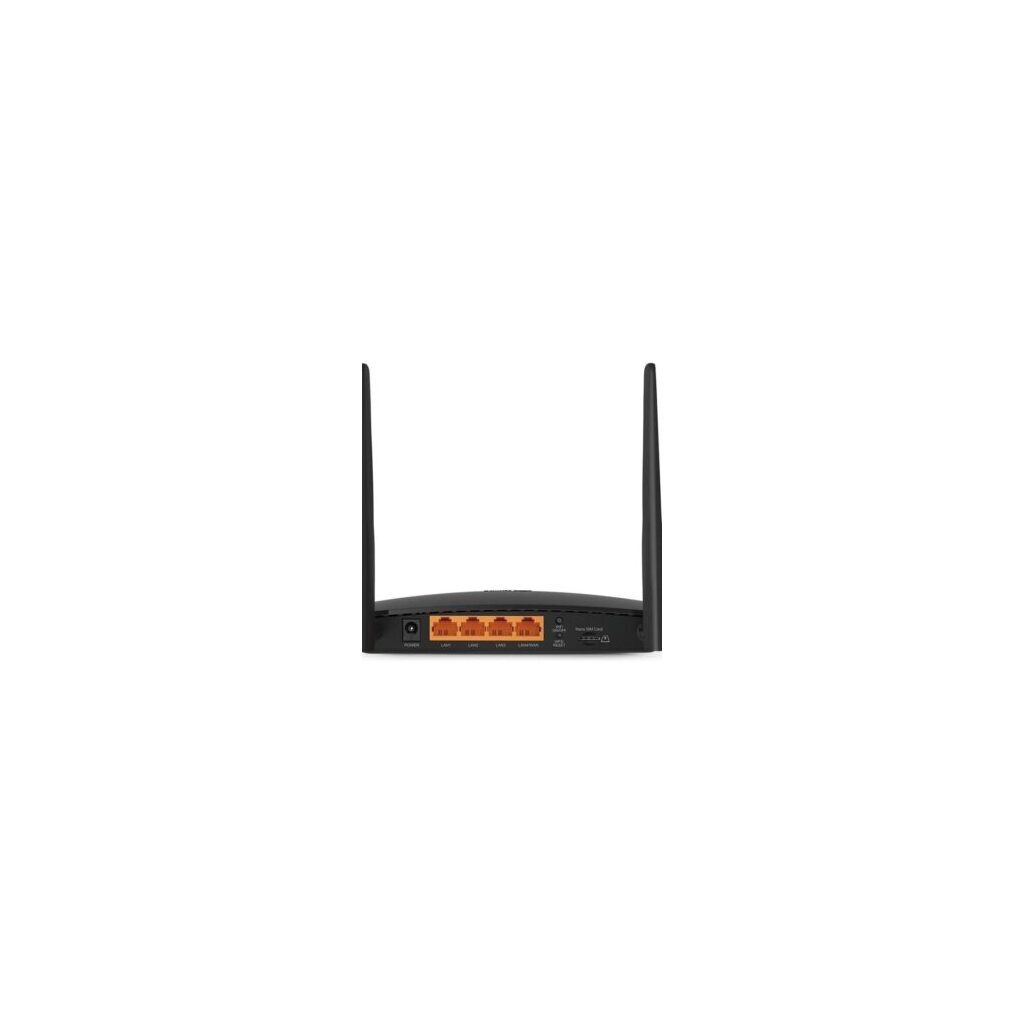

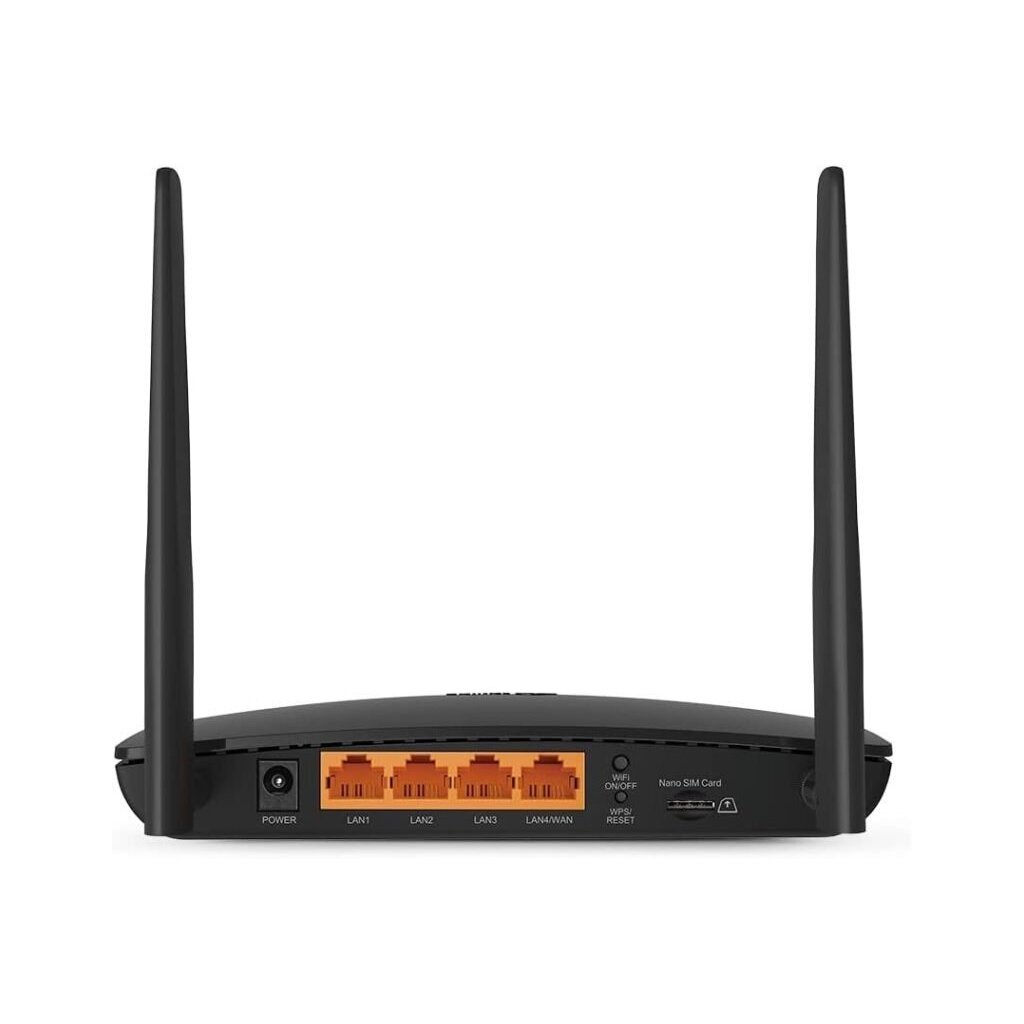

• 3 10/100Mbps LAN Ports & 1 10/100Mbps LAN/WAN Port

Button

• WPS/Reset Button, Wireless On/Off Button, Power On/Off Button

External Power Supply

• 12V/1A

Dimensions (W x D x H)

• 7.95 x 5.55 x 1.32 in. (202 x 141 x 33.6 mm)

Wireless

• Network Type
• 4G: FDD-LTE Cat4 (800/900/1800/2100/2600MHz) TDD-LTE (2300/2600MHz)
• 3G: DC-HSPA+/HSPA+/HSPA/UMTS (900/2100MHz)
• 2G: EDGE/GPRS/GSM (850/900/1800/1900MHz)

Wireless Standards

• IEEE 802.11b/g/n 2.4GHz

Frequency

• 2.4GHz

Signal Rate

• 300Mbps at 2.4GHz

Transmit Power

• CE: <20dBm(2.4GHz)

Reception Sensitivity

• 11g 54M: -74dBm
• 11n HT20: -71dBm
• 11n HT40: -67dBm

Wireless Function

• Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics

Wireless Security

• 64/128-bit WEP, WPA/WPA2, WPA-PSK/WPA2-PSK encryptions

Software

• Operating Modes
• 3G/4G Router, Wireless Router

WAN Type

• Dynamic IP/Static IP/PPPoE/PPTP(Dual Access)/L2TP(Dual

Access)

DHCP

• Server, Client, DHCP Client List, Address Reservation

Quality of Service

• Trafc Control(IP QoS)

Port Forwarding

• Virtual Server, Port Triggering, UPnP, DMZ

Dynamic DNS

• DynDns, NO-IP

VPN Passthrough

• PPTP, L2TP, IPSec

Access Control

• Parental Control, Local Management Control, Host List,Access Schedule, Rule Management

Firewall Security

• DoS, SPI Firewall, IP Address Filter/Domain Filter, IP and MAC Address Binding

Protocols

• Supports IPv4 and IPv6

Management

• Access Control, Local Management, Remote Management

Guest Network

• 2.4GHz guest network x 1

Package Contents

• 300Mbps Wireless N 4G LTE Router, TL-MR6400
• RJ45 Ethernet Cable
• Power Adapter
• Quick Installation Guide

Certication

• CE, FCC, RoHS

System Requirements

• Microsoft Windows 98SE, NT, 2000, XP, Vista™ or Windows 7, 8, 8.1, MAC OS, NetWare, UNIX or Linux
• Internet Explorer 11, Firefox 12.0, Chrome 20.0, Safari 4.0 browers or higher, or other Java-enabled browsers
• Nano SIM Card

Environment

• Operating Temperature: 0℃~40℃ (32℉ ~104℉)
• Storage Temperature: -40℃~70℃ (-40℉ ~158℉)
• Operating Humidity: 10%~90% non-condensing
• Storage Humidity: 5%~90% non-condensing
