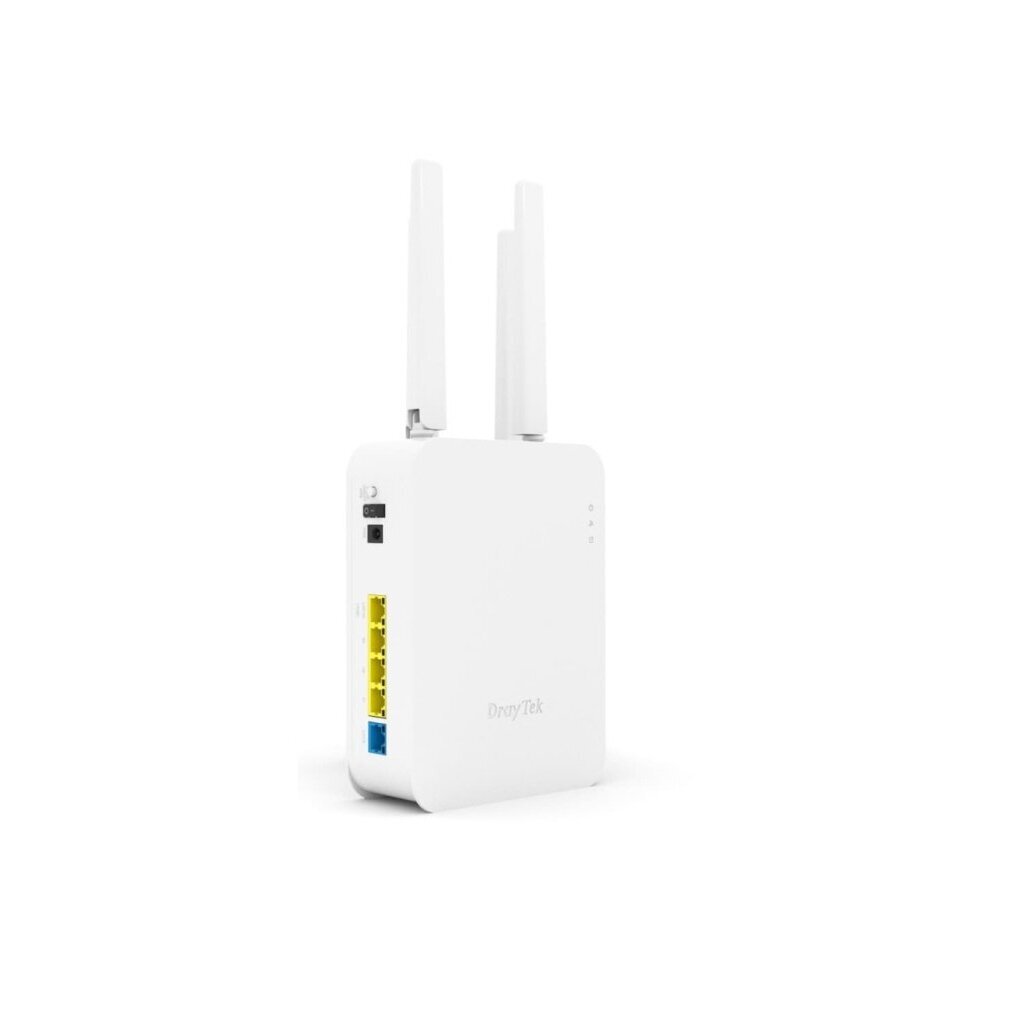

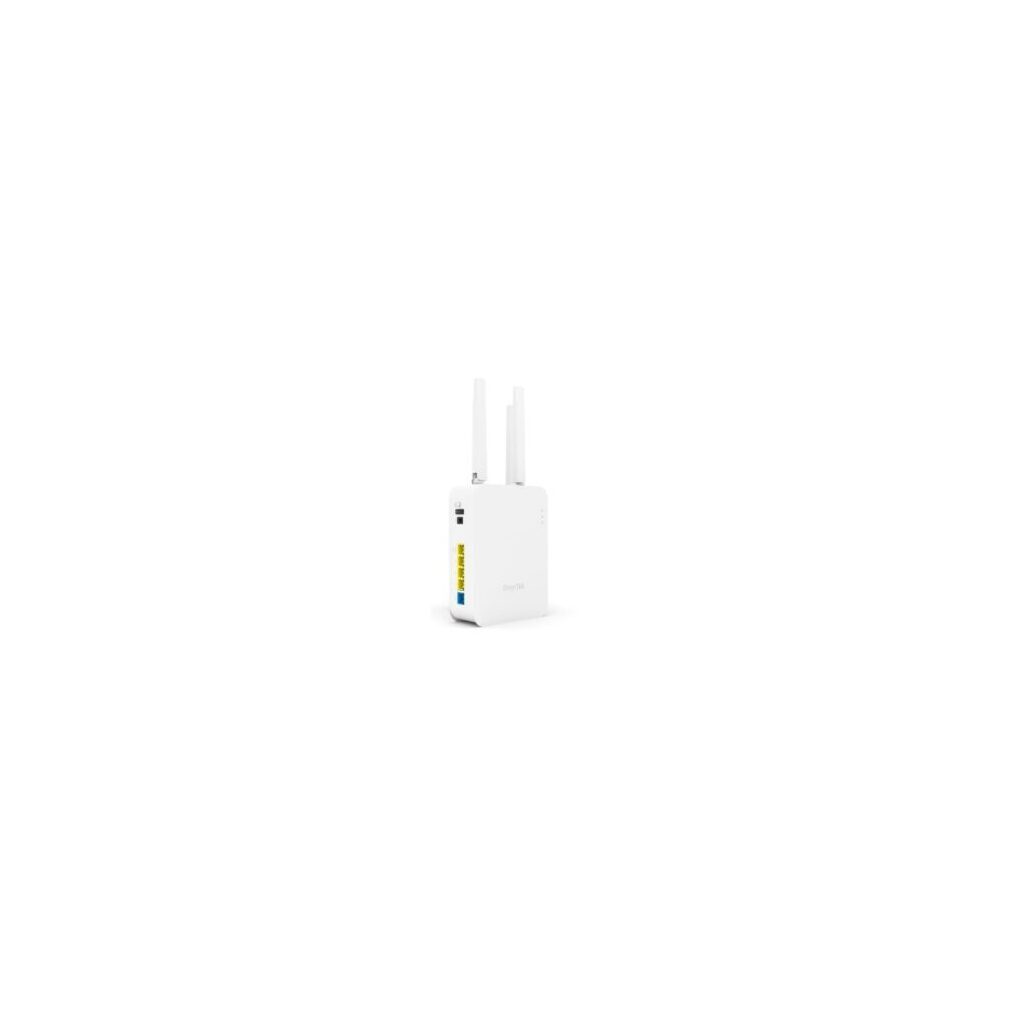

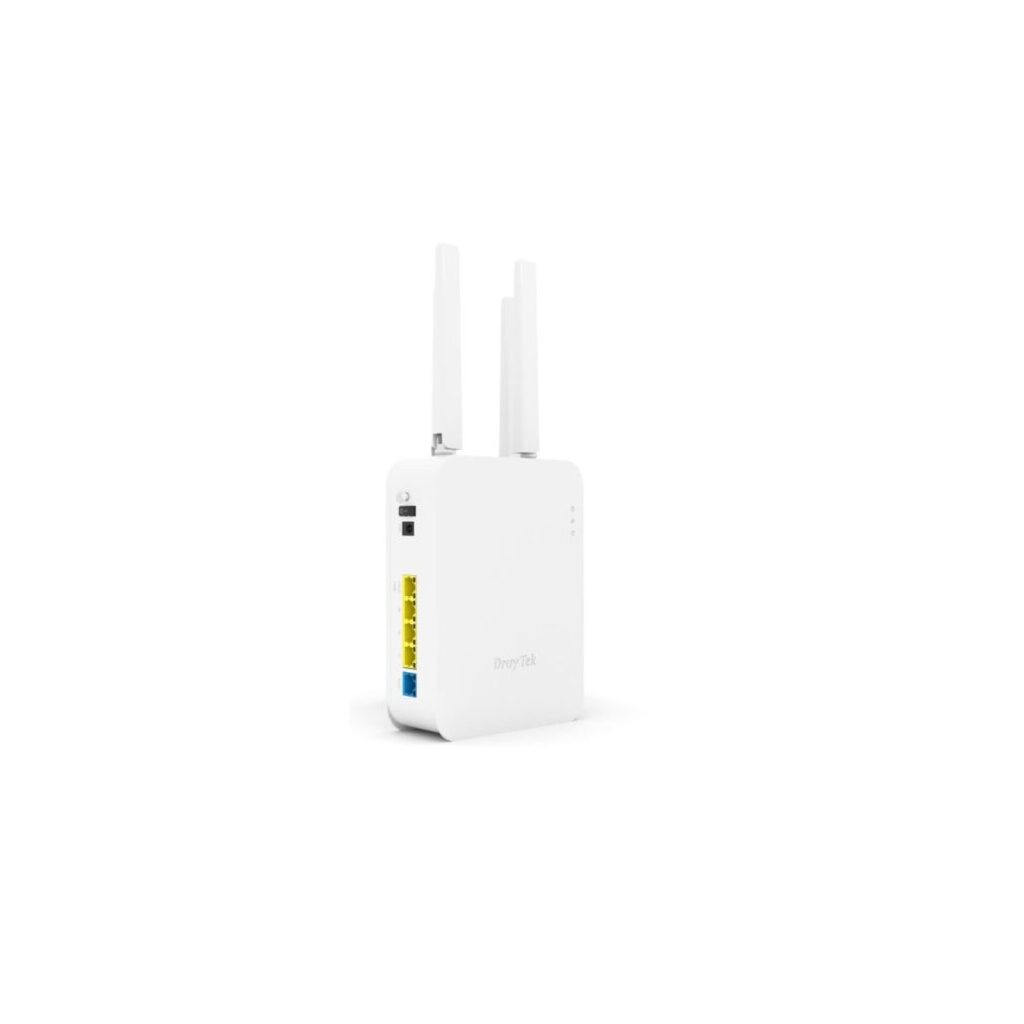

Draytek VIGOR AP906 WiFi6 Mesh Access Point
£188.98
Shipping calculated at checkout.
VigorAP 906 is 11ax wall-mount/desktop wireless access point with a 5-port LAN switch. With wire-liked link rate up to 2402 Mbps in 5GHz band and up to 574 Mbps in 2.4GHz band, it’s suitable for high density environments. It can be cloud-managed by VigorACS*, and also act as the mesh Root AP to manage up to 7 mesh node APs in LA.
PoE Power Supply
Simplify the infrastructure by getting data and power through a single cable
Multiple SSID
Mapping Wi-Fi clients to different VLANs and have a different set of security standards
Wi-Fi Scheduling
Schedule Wi-Fi On and Off to control wireless access and save energy.
Local RADIUS Server
User profile database for local and external 802.1x authentication.
Airtime Fairness
Equalize the transmission time of each client so the legacy devices won’t slow everyone down.
Hotspot Web Portal
Market your business and communicate with the guests while offering hospitality WLAN
Band Steering
Redirect 5GHz-capable devices to the 5GHz radio to get a faster speed.
Central AP Management
Manage, maintain, and monitor VigorAP 906 from the DrayTek routers
Assisted Wi-Fi Roaming
Solve the sticky client problem and improve Wi-Fi roaming experience.
Mesh (Wireless model only)
Easily link to other VigorAP to expand the wireless network
Utilize Transmission Opportunity with OFDMA
OFDMA has been used in LTE for many years, and is now available in 802.11ax for multi-user mode.
Traditionally with OFDM, each frame is transmitted across the entire channel width. With low-rate transmission still using the whole channel, it brings latency and jitter to others and lower the overall efficiency.
OFDMA splits a single transmission into groups of subcarriers, and each subcarrier can be used by different client. With multiple clients transmitting simultaneously in the same channel, it improves efficiency of every single transmission opportunity and thus increases the wireless experiences in high density environment.
Making Transmission Effective
Disassociate the Wireless clients who are out of the effective transmission range defined by custom Basic Rate or/and RSSI threshold, and force them to pick up another access point with a stronger signal.
Resource Saving
Proactively kick out the clients with a low basic rate or low RSSI can prevent the access points trying to do ineffective transmission but saving the airtime, which will results in better WLAN experience for all.
No Controller Required
Assisted Roaming is a feature built in all Vigor Access Points and selected Wireless routers. They operate without a wireless controller, providing an ideal solution for simple network deployment.
Stronger Signal Guaranteed
By using the “Minimum RSSI with Adjacent AP” option, the AP/Router on the same local subnet will exchange client information with each other, providing the choice to disassociate the client only when other AP detecting a stronger signal. Thus to keep the client stayed when there is no other AP nearby.
Three Modes in One
AP Mode
- The mode mostly used
- VigorAP acts as a bridge between wireless devices and wired Ethernet network, and exchanges data between them.
Pros
- Limited wireless coverage
- Require physical wire to connect to the Ethernet
Cons
