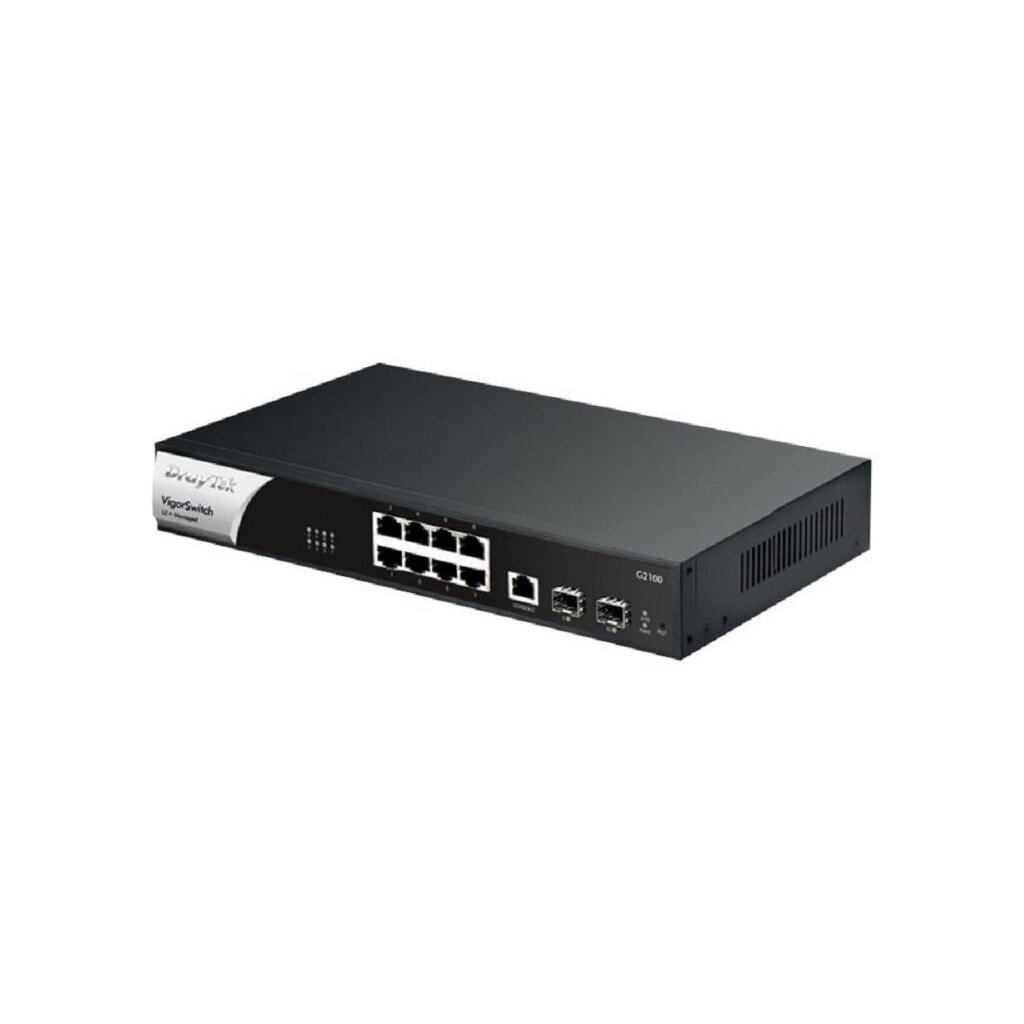

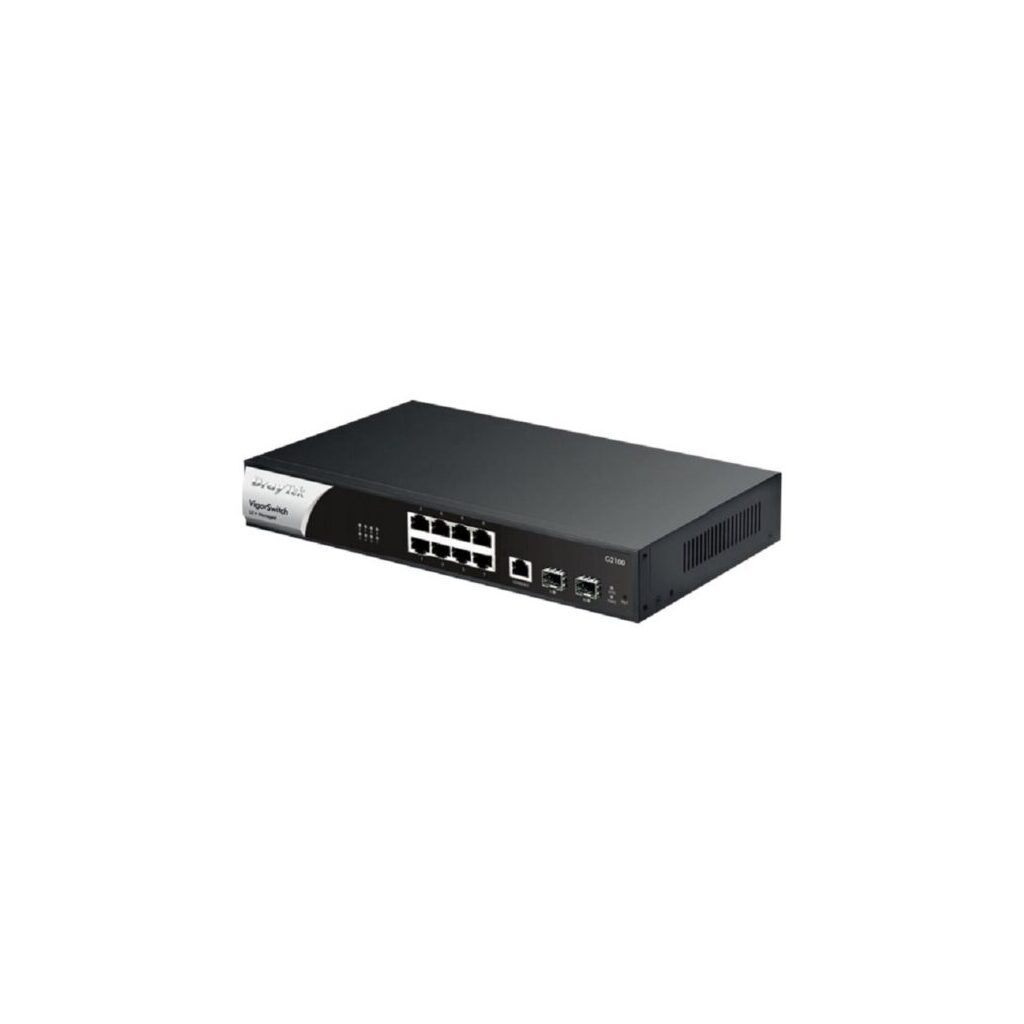

Draytek G2100 8 Port Managed Gigabit Switch

Product Description Draytek VigorSwitch G2100 – switch – 8 ports – Managed – rack-mountable Device Type Switch – 8 ports – L2+ – Managed Enclosure Type Rack-mountable 1U Subtype Gigabit Ethernet Ports 8 x 10/100/1000 + 2 x Gigabit SFP (uplink) Performance Forwarding performance (64-byte packet size): 14.88 Mpps
Switching capacity: 20 Gbps Capacity Virtual interfaces (VLANs): 256
QoS queues: 8
Total link aggregation groups: 4 MAC Address Table Size 8K entries Jumbo Frame Support 9KB Routing Protocol IGMPv2, static IP routing, IGMPv3, MLDv2, MLD Remote Management Protocol SNMP 1, RMON 1, RMON 2, RMON 3, RMON 9, SNMP 3, SNMP 2c, HTTP, HTTPS, SSH-2 Features Flow control, auto-negotiation, load balancing, VLAN support, IGMP snooping, Syslog support, traffic shaping, E-mail alert, Weighted Round Robin (WRR) queuing, Broadcast Storm Control, IPv6 support, Multicast Storm Control, Unicast Storm Control, SNTP support, Spanning Tree Protocol (STP) support, Rapid Spanning Tree Protocol (RSTP) support, Multiple Spanning Tree Protocol (MSTP) support, DHCP snooping, Access Control List (ACL) support, Quality of Service (QoS), DHCP server, MLD snooping, Dynamic ARP Inspection (DAI), reset button, IPv4 support, LLDP support, Energy Efficient Ethernet, Multicast VLAN Registration (MVR), Strict Priority Queuing (SPQ), port isolation, Class of Service (CoS), tagged VLAN, Generic VLAN Registration Protocol (GVRP), ONVIF support, DiffServ Code Point (DSCP) support, Protocol-based VLANs support, IP source guard, layer 2+ switching, Link Aggregation, scheduler, rate limit, Authentication, Authorization and Accounting (AAA), IGMP querier, VLAN Double Tagging (Q-in-Q), Voice VLAN, VLAN management, LLDP-MED, Private MIB, Guest VLAN, Denial of Service (DoS) protection, DSCP based CoS, MAC based VLAN, loopback detection, Unknown Storm Control, 4.1Mbit packet buffer, Address Conflict Detection, OpenVPN client, DSCP based QoS Compliant Standards IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.1ad, IEEE 802.1ab (LLDP), IEEE 802.3az Power AC 120/230 V Dimensions (WxDxH) 27 cm x 18.1 cm x 4.4 cm Weight 1.78 kg Localisation United Kingdom Manufacturer Warranty 2-year warranty
