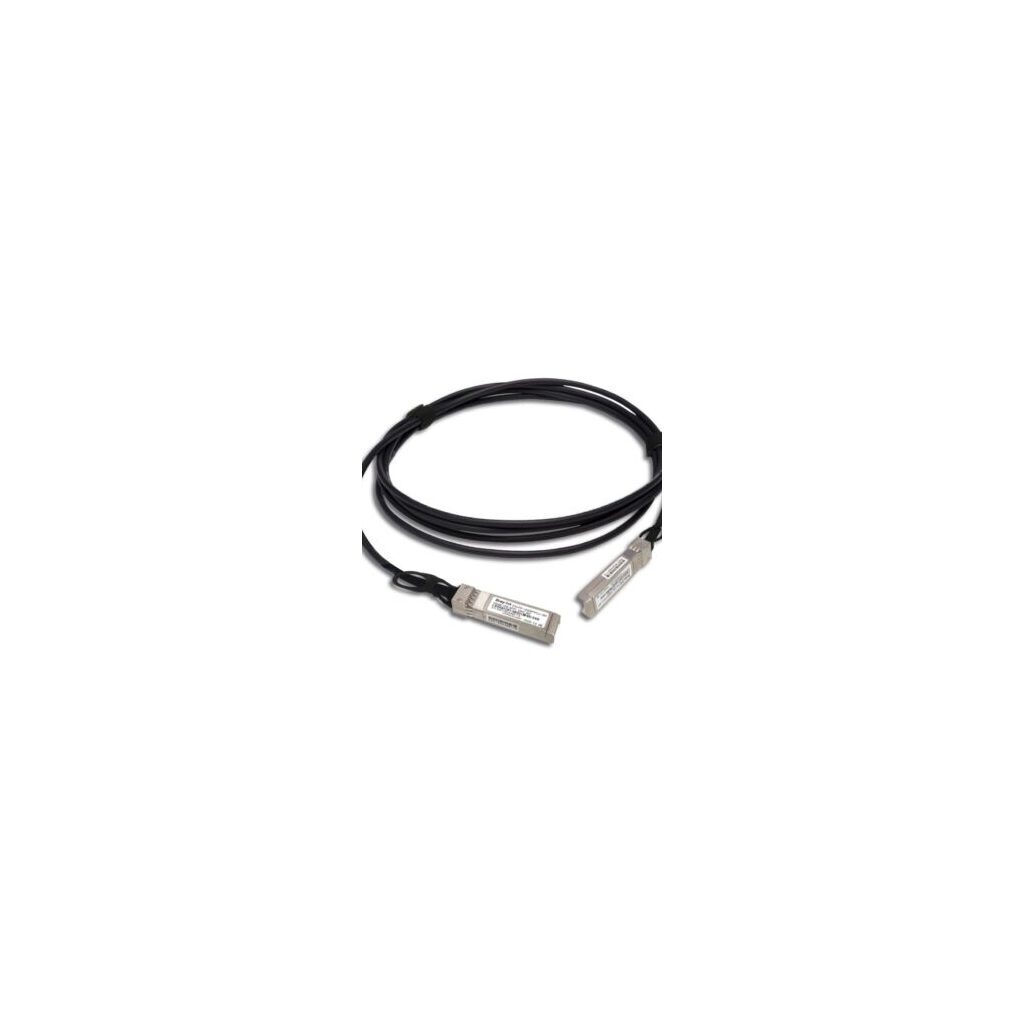

DrayTek DCX101 CX10 SFP DAC Cable 1M

Key Features

• SFP & SFP+ Direct Attach Cable
• Self-Locking on insertion for reliable installation
• Pull-Tab for easy removal
• 1GbE & 10GbE Capable
• Available in 1 Meter & 3 Meter Cable Lengths

SFP Direct Attach Cable for Switch Uplinks

Use DrayTek DAC-CX10 SFP cables to connect directly to the SFP module port of a DrayTek switch or router, such as the DrayTek VigorSwitch P2500 50-port switch and DrayTek Vigor 3900 router.

The DAC-CX10 cable is a cost effective interlink cable between switches, routers and servers, with throughput from 1 Gigabit per second, up to 10 Gigabits per second depending on the devices being connected.

A “Direct Attach Cable” or “DAC” connects SFP module ports on two devices similarly to an RJ-45 network cable, instead of using SFP to optical fiber transceivers, or SFP to RJ-45 transceivers.
This significantly simplifies the connection process and reduces cost, while still ensuring reliable operation. For instance, if both devices support 10 Gigabit transfer rates through SFP+, instead of using two SFP+ Fiber transceivers and optical fiber, simply connect the DAC-CX10-01M cable between the two for an up to 10Gbps link.

The DAC-CX10 is available in 3 Meter and 1 Meter cable length variants, with its cable shielded to protect from nearby electrical interference. The SFP module locks securely into place when fitted into a switch to avoid unintended removal. Remove the DAC-CX10 by pulling the attached pull-tab to unlock it from the SFP module slot.
