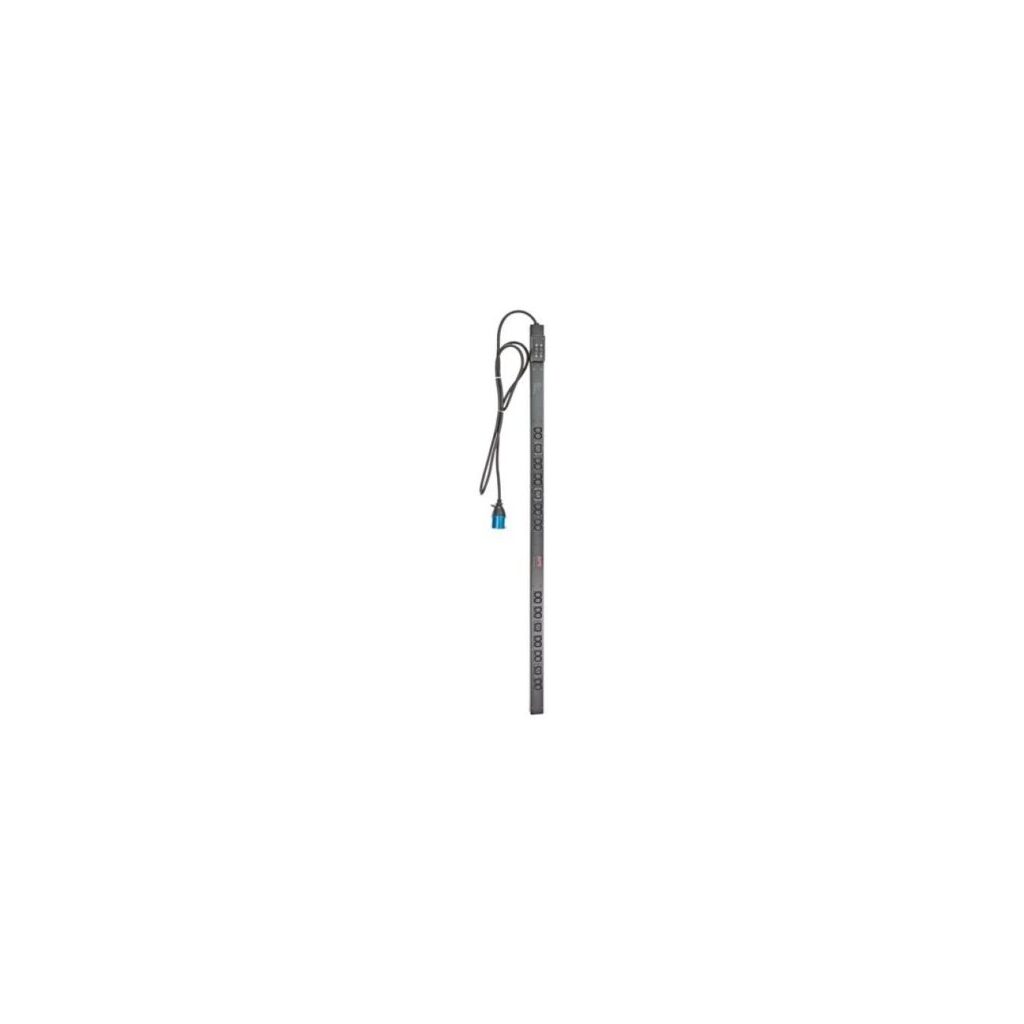

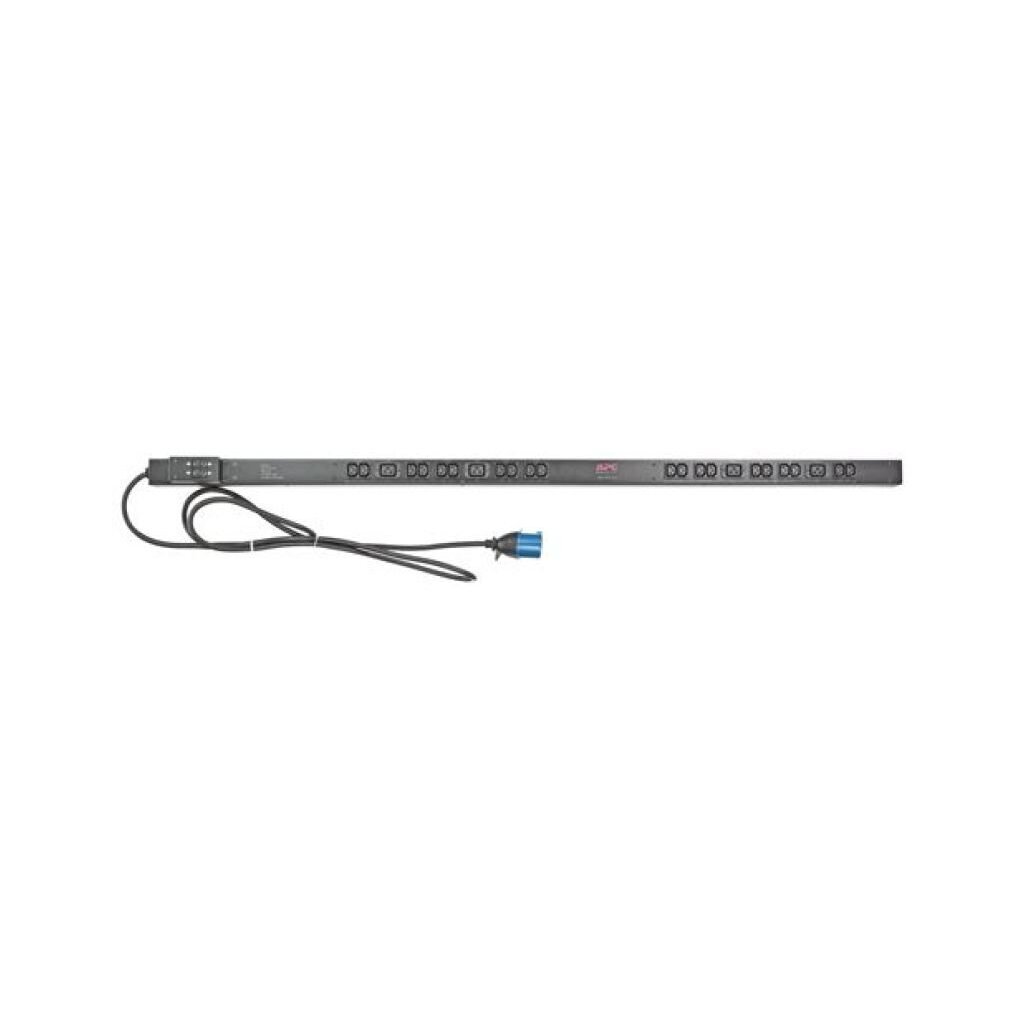

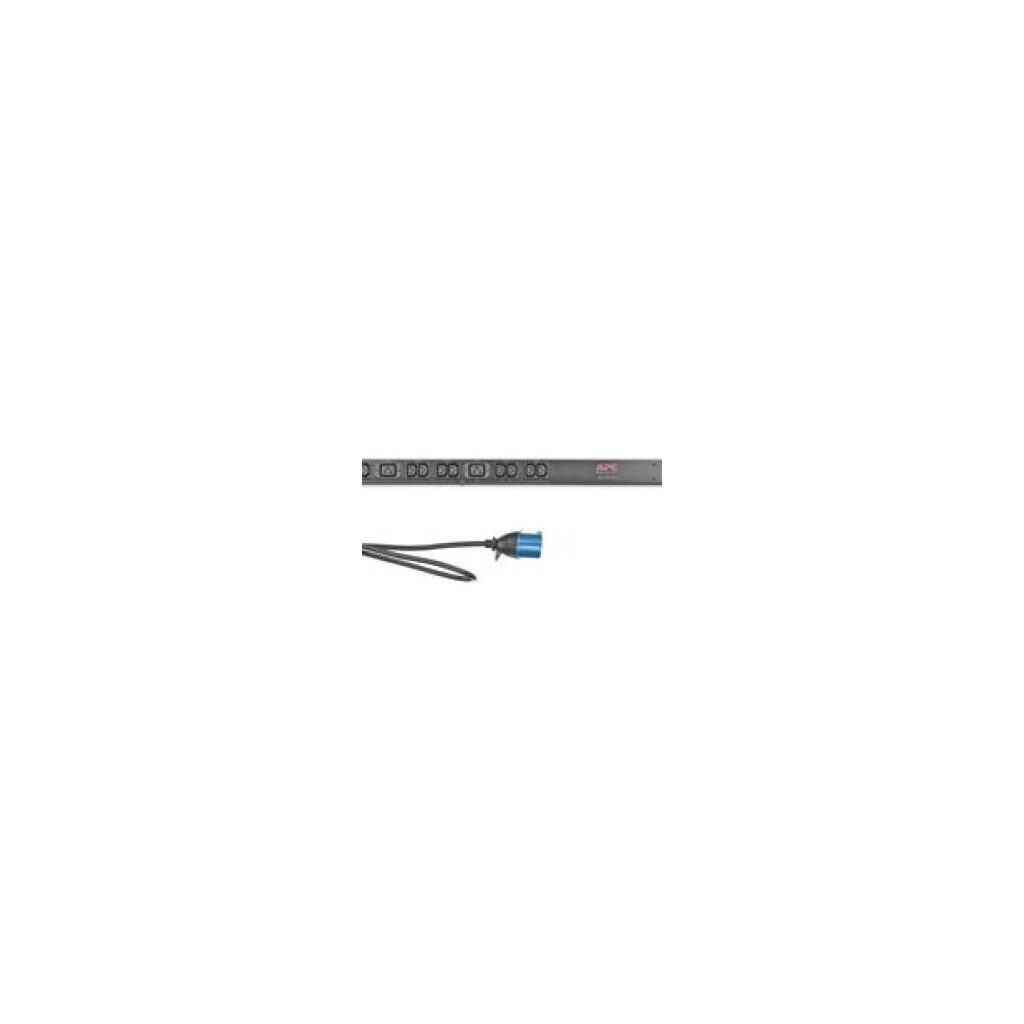

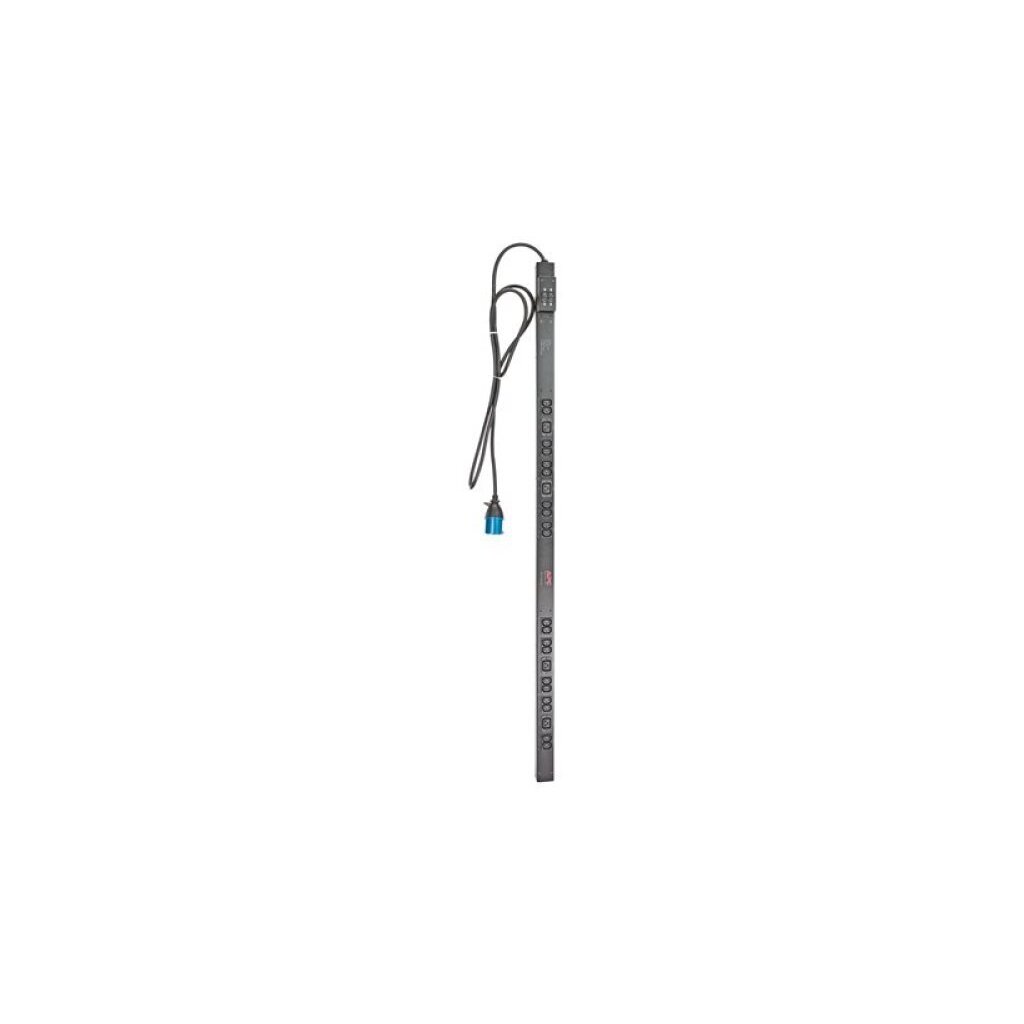

APC Rack PDU, Basic, Zero U, 32A, 230V, (20)C13 & (4)C19

Basic Rack Power Distribution Units (PDUs) allow users to distribute power outlets to rack-mount equipment.

APC offers a wide variety of Basic Rack Power Distribution Units (PDUs), which allow users to distribute power outlets to rack-mount equipment. Horizontal and vertical units are available as well as a variety of power inputs and outputs to fit most power environments. APC now offers Basic Rack PDUs that mount vertically, without tools in the rear channel of a NetShelter VX.

Features

Toolless Mounting Capabilities

Units do not require additional tools to mount into APC NetShelter Enclosure, which allows the users to quickly and easily mount units in the rear of the enclosure.

Vertical Mounting Capabilities

Easily mounts vertically in racks or enclosures and occupies zero U of valuable rack space, which allows more equipment in the rack. Units that mount vertically are optimized to fit in a NetShelter enclosures.

Resettable circuit breakers

Enables a quick recovery from overload events.

Agility

Rack-Mountable

Includes horizontal, vertical, and toolless-mount varieties. Puts power where it is needed most – in the racks near the equipment.

Single input power source

Supply power from one branch whip to multiple pieces of equipment, conveniently powering rack-mount equipment. Saves time and money during installation by using one branch whip and standard connections.

Wide range of input and output connections

Product family includes a variety of input and output connections to distribute 120V, 208V, or 230V power to multiple outlets. Having a variety of inputs and outputs allow users to adapt to varying power requirements. APC offers units that bring up to 14.4kW using a single branch whip.

Total Cost of Ownership

Low Cost Power Distribution

Provides a number of outlets to bring power to rack equipment at an affordable price.

Specification

Output

• Nominal Output Voltage – 230V
• Maximum Total Current Draw per Phase – 32A
• Output Connections- (20) IEC 320 C13 / (4) IEC 320 C19

Input

• Nominal Input Voltage – 200V, 208V, 230V
• Input Frequency – 47 – 63 Hz
• Input Connections – IEC 309 32A 2P+E
• Cord Length – 3.05 meters
• Number of Power Cords – 1
• Maximum Input Current per phase – 32A
• Load Capacity – 7360 VA

Physical

• Net Weight – 5.57 KG
• Maximum Height – 1619.00 mm
• Maximum Width – 56.00 mm
• Maximum Depth – 44.00 mm
• Shipping Weight – 6.48 KG
• Shipping Height – 2134.00 mm
• Shipping Width – 152.00 mm
• Shipping Depth – 127.00 mm
• Color – Black

Environmental

• Operating Environment – 0 – 45 °C
• Operating Relative Humidity – 0 – 95%
• Operating Elevation – 0-3000 meters
• Storage Temperature – -25 – 65 °C
• Storage Relative Humidity – 0 – 95%
• Storage Elevation – 0-15000 meters

Conformance

• Regulatory Approvals – CE, VDE
• Standard Warranty – 2 years repair or replace

Sustainable Offer Status

• RoHS – Compliant
• REACH – REACH: Contains No SVHCs

Includes: Installation guide, Rack Mounting brackets, Toolless Mounting Kit
